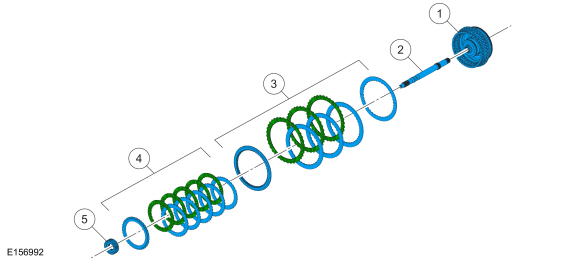

Input Shaft Exploded View

Ford Fusion. Input Shaft. Description and Operation
Item Description
1 Direct (3, 5, R)/overdrive (4, 5, 6) clutch hub
2 Input shaft
3 Direct (3, 5, R) clutch
4 Overdrive (4, 5, 6) clutch
5 Center planetary sun gear

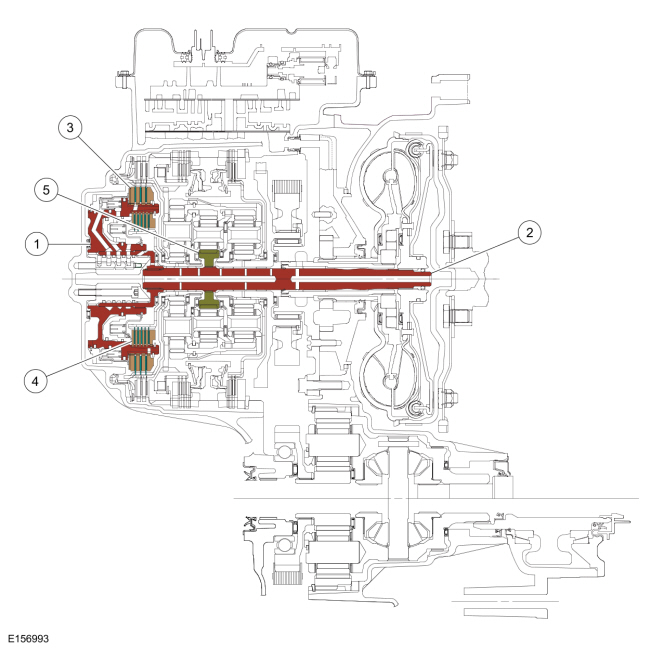

Input Shaft Cutaway View

Ford Fusion. Input Shaft. Description and Operation

Input Shaft

The input shaft is part of the direct/overdrive clutch assembly and is splined to the torque converter turbine and the center planetary sun gear. The input shaft transfers power from the torque converter to the rear planetary gearset through the center planetary sun gear and the direct (3, 5, R) and overdrive (4, 5, 6) clutches.

    Pump Assembly. Description and Operation

    ..

    Planetary Assembly. Description and Operation

    Planetary Gearset Exploded View Item Description 1 Front planetary sun gear and shell assembly 2 Front planetary carrier/rear planetary ring gear assembly 3 Gear - center planetary sun 4 Center planetary carrier/front ring gear assembly 5 Rear planetary carrier/center ring gear assembly..
