Ford Fusion: Front End Body Panels / Hood. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

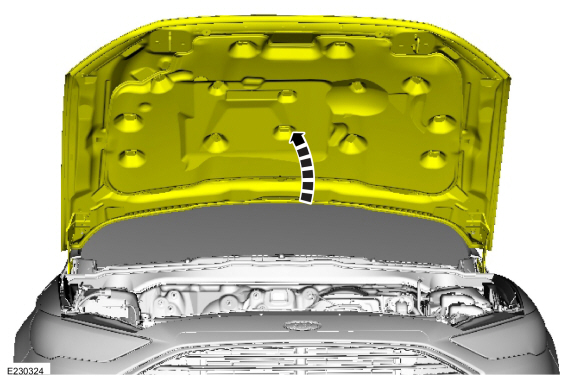

  1. Open hood.
Ford Fusion. Hood. Removal and Installation

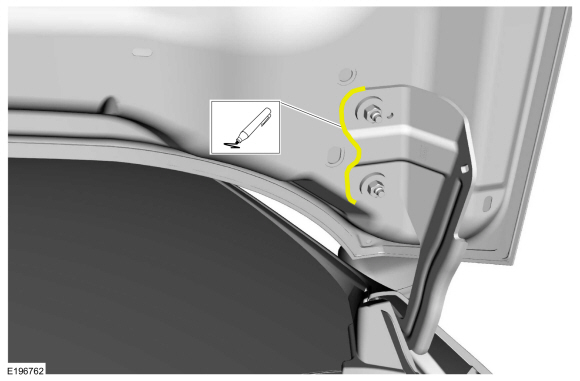

  1. On both sides.
    Index-mark the hood hinge location to aid in hood installation.
Ford Fusion. Hood. Removal and Installation

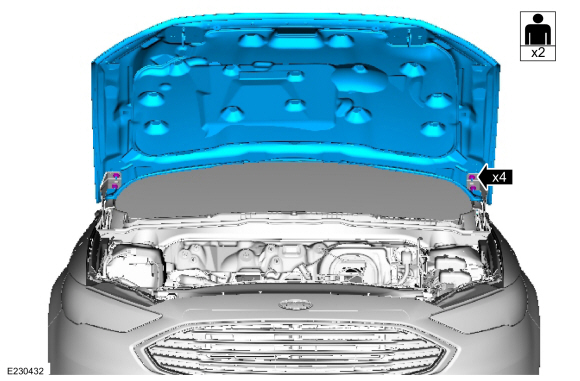

  1. NOTE: An assistant is necessary for the support and removal of the hood.

    Remove the nuts and the hood.
    Torque: 18 lb.ft (25 Nm)
Ford Fusion. Hood. Removal and Installation

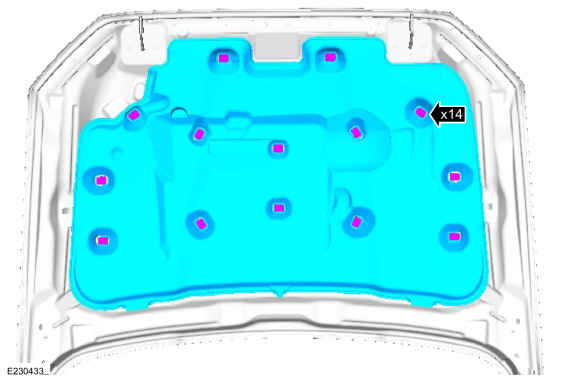

  1. NOTE: This step is only necessary when installing a new component.

    Remove the pin-type retainers and the hood insulation.
Ford Fusion. Hood. Removal and Installation

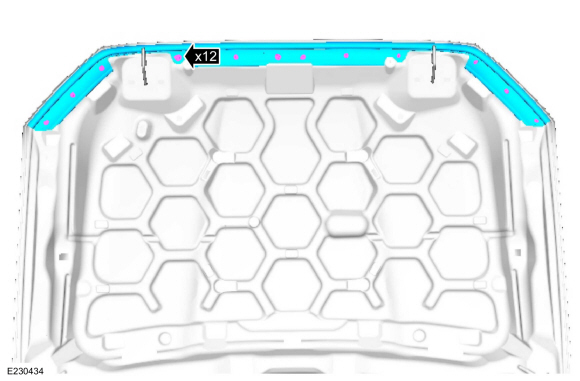

  1. NOTE: This step is only necessary when installing a new component.

    Remove the pin-type retainers and the hood pad assembly.
Ford Fusion. Hood. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Check the hood alignment. Align the hood as necessary.
    Refer to: Hood Alignment (501-03 Body Closures, General Procedures).
