Ford Fusion: Information and Entertainment System - General Information - Vehicles With: SYNC 3 / Front Door Tweeter Speaker. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

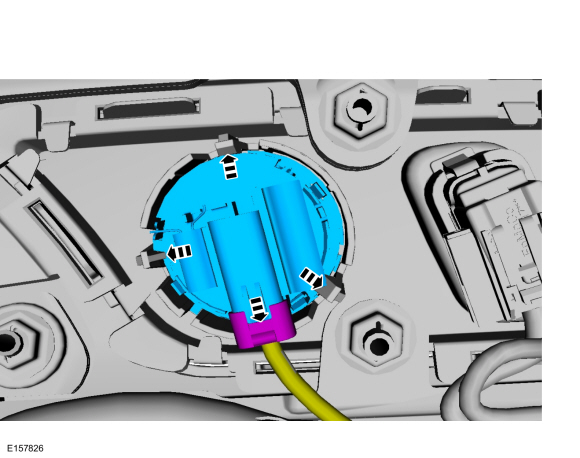

Release the tabs and remove the front door tweeter speaker.
-
Disconnect the electrical connector.
Installation
-
To install, reverse the removal procedure.
