Removal

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

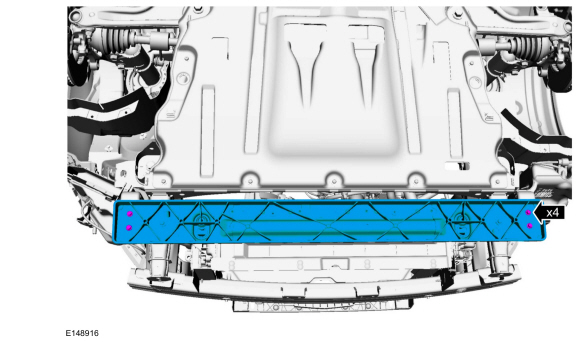

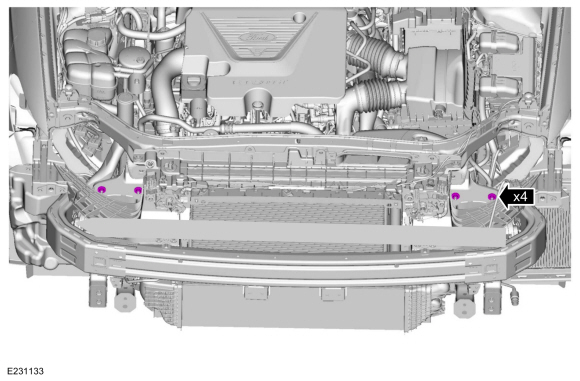

  1. Remove the bolts and the lower radiator support.
    Torque: 177 lb.in (20 Nm)
Ford Fusion. Front Bumper. Removal and Installation
  1. If equipped, remove the CCM and bracket.
    Refer to: Cruise Control Module (CCM) (419-03A Cruise Control, Removal and Installation).
  1. Remove the headlamp assemblies.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).
  1. Remove the horn assemblies.
    Refer to: Horn (413-06 Horn, Removal and Installation).

Vehicles equipped with active grille shutters

  1. Remove the active grille shutter.
    Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).

Vehicles not equipped with active grille shutters

  1. On both sides.

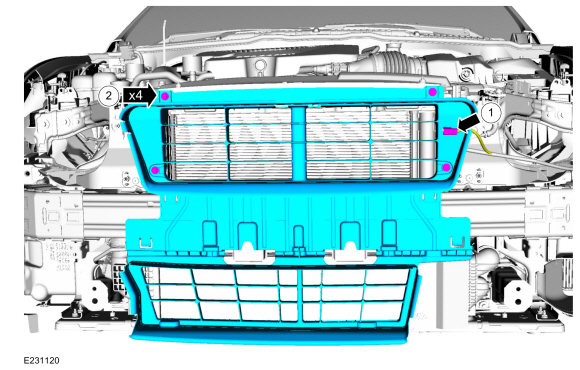

    Remove the pin-type retainers and position the radiator side air deflector aside.
Ford Fusion. Front Bumper. Removal and Installation

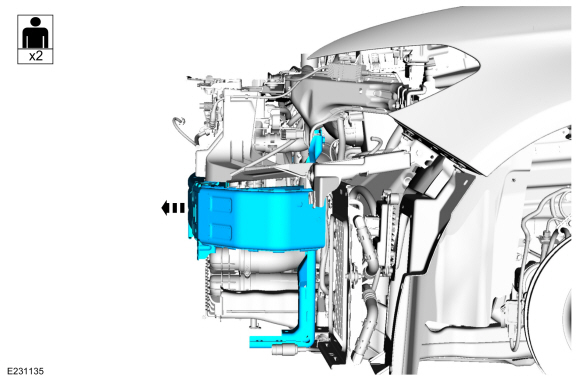

  1. Remove the radiator air deflector.
    1. Separate the wiring harness from the radiator air deflector.

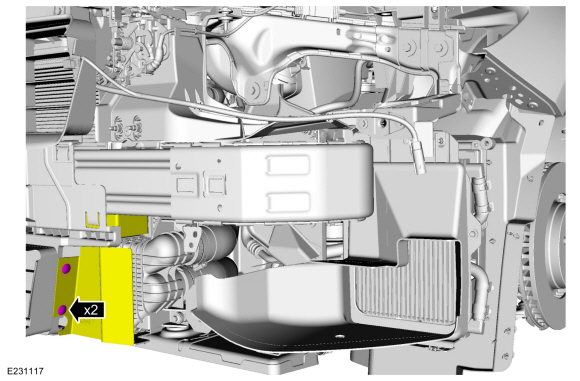

    1. Remove the bolts.
      Torque: 53 lb.in (6 Nm)
Ford Fusion. Front Bumper. Removal and Installation

All vehicles

  1. NOTE: The bolts are accessed from behind the front bumper brackets.

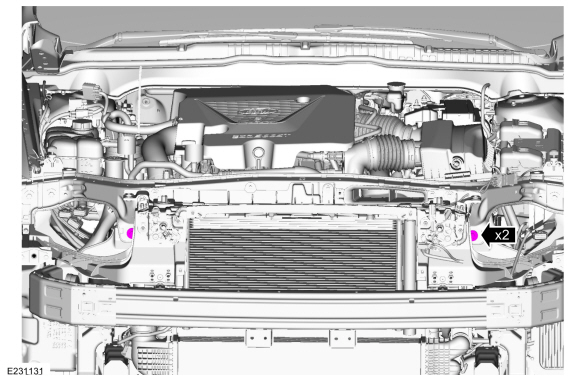

    Remove the bolts.
    Torque: 177 lb.in (20 Nm)
Ford Fusion. Front Bumper. Removal and Installation
  1. Remove the front bumper adjuster bolts.
    Torque: 18 lb.ft (24 Nm)
Ford Fusion. Front Bumper. Removal and Installation

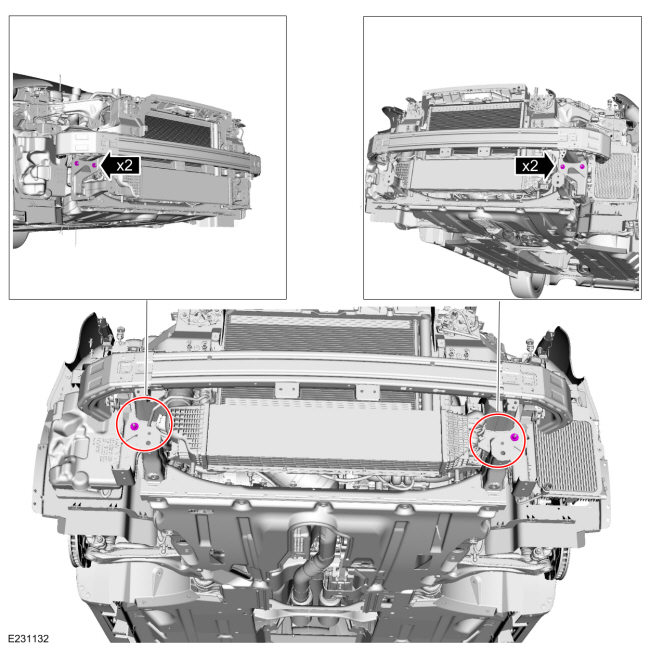

  1. Remove the lower front bumper nuts.
    Torque: 18 lb.ft (24 Nm)
Ford Fusion. Front Bumper. Removal and Installation

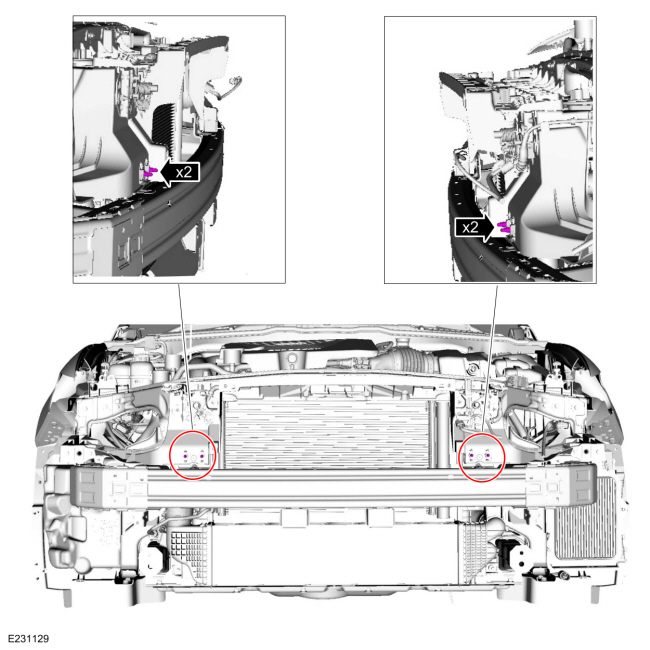

  1. Remove the upper front bumper nuts.
    Torque: 18 lb.ft (24 Nm)
Ford Fusion. Front Bumper. Removal and Installation
  1. On both sides.

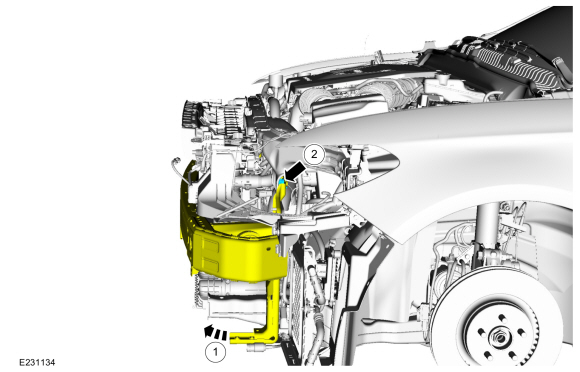

    1. Rotate the front bumper upward pivoting on the upper bumper studs.
    1. Remove the bumper adjusters.
Ford Fusion. Front Bumper. Removal and Installation
  1. Remove the front bumper.
Ford Fusion. Front Bumper. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
