Ford Fusion: Bumpers / Front Bumper Cover. Removal and Installation
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front wheels and tires.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
-
On both sides.

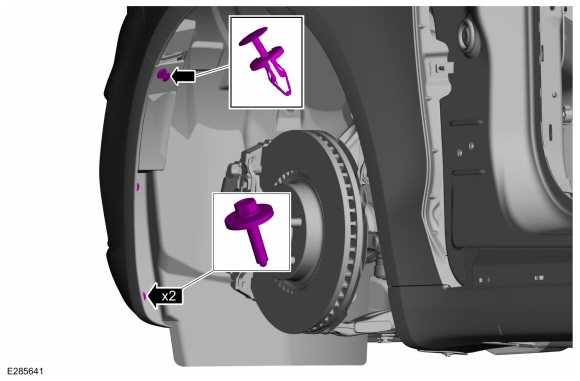

Remove the rivet push pin and the screws from the front of the fender liner.
-

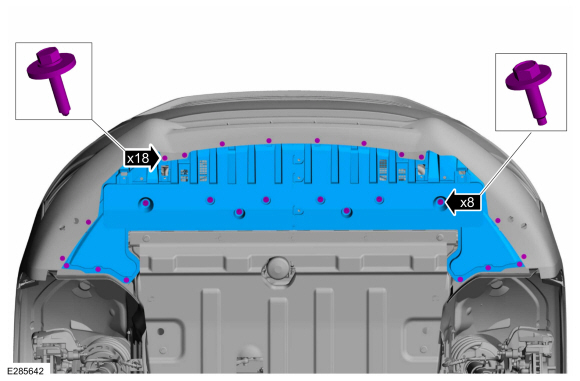

Remove the screws and the lower radiator closeout.
-

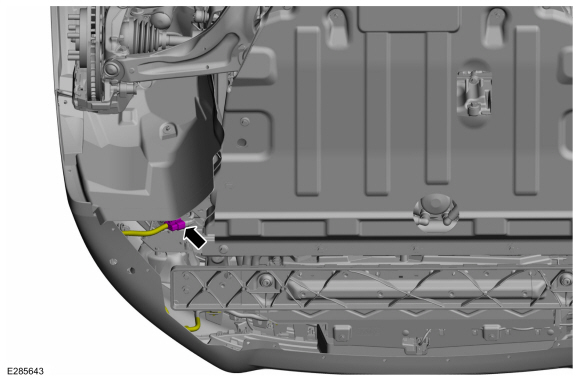

Disconnect the electrical connector.
-
If equipped.

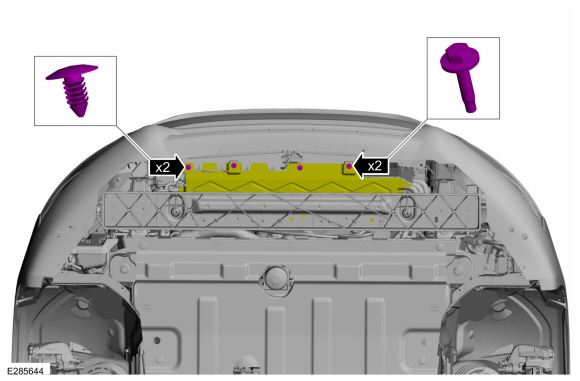

Remove the pin-type retainers, the screws and position the air deflector down.
-
If equipped.

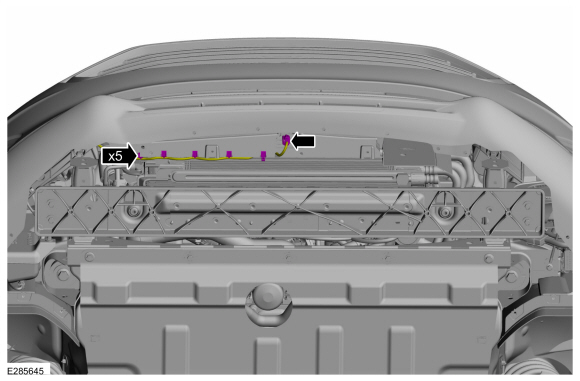

Disconnect the electrical connector and release the wiring harness guides.
-

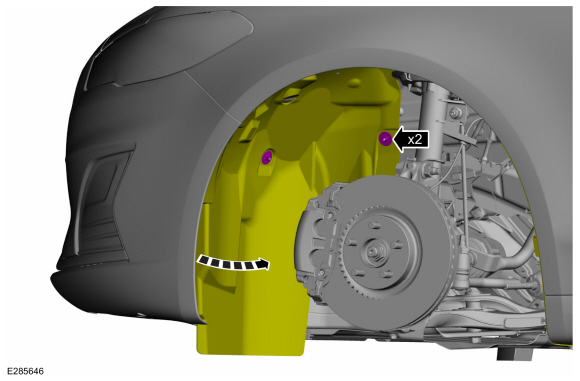

Remove the nuts and position the fender liner aside.
-

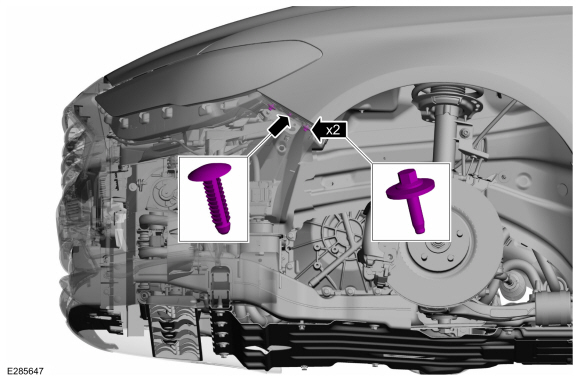

Remove the front bumper cover-to-fender bolts and the push pin.
-
If equipped.

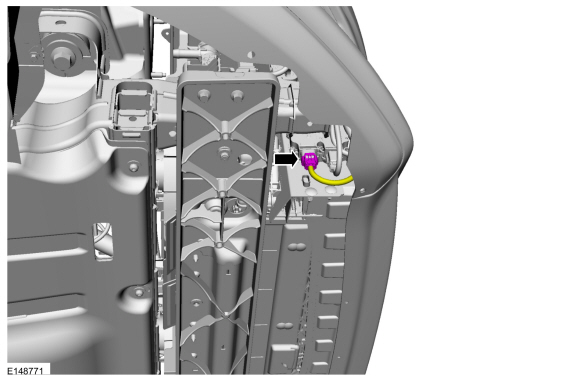

Disconnect the electrical connector.
-
Remove the upper front bumper cover bolts, the screws and the push pins.
-
With the help of assistant.
Release the sides of the front bumper cover from the brackets and position forward.
-

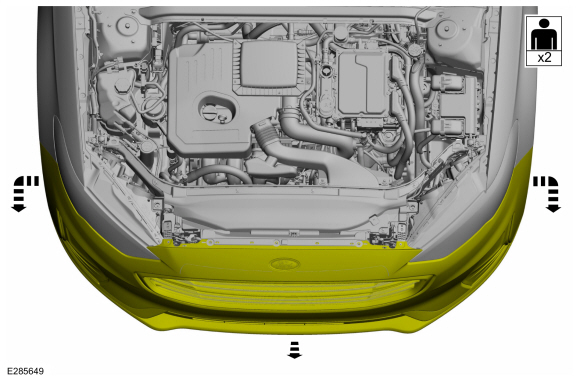

Remove the front bumper cover.
-

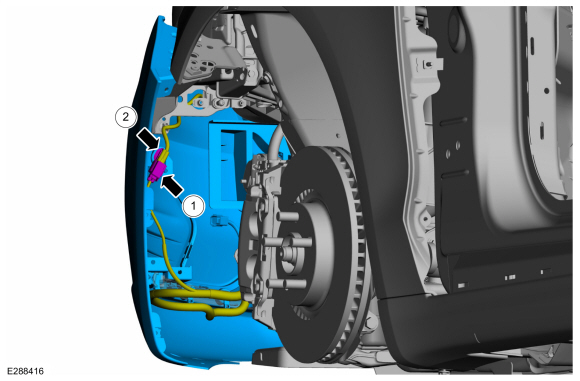

Disconnect the electrical connector.
-
Detach the wiring harness retainer and remove the front bumper cover.
Installation
-
To install, reverse the removal procedure.
Removal
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation)...
