Ford Fusion: Bumpers / Rear Bumper. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Bumpers / Rear Bumper. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

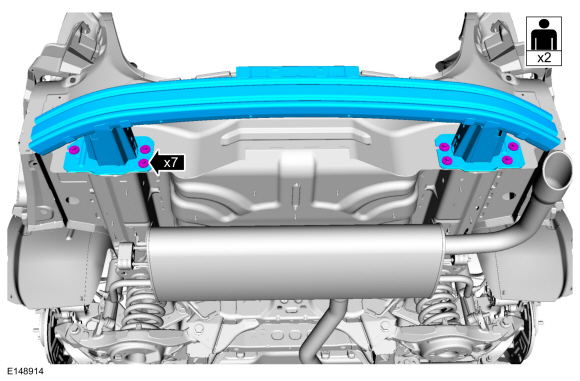

  1. Remove the bolts and the rear bumper.
    Torque: 22 lb.ft (30 Nm)
Ford Fusion. Rear Bumper. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
