Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Final Drive. Description and Operation
Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Final Drive. Description and Operation

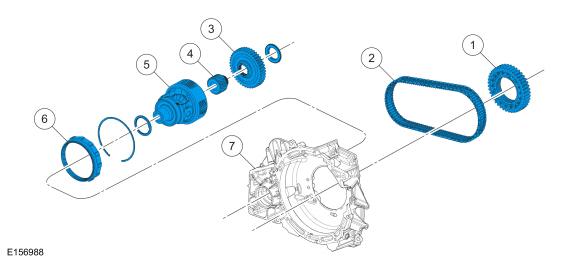

Final Drive Component Exploded View
| Item | Description |
| 1 | Drive chain drive sprocket |
| 2 | Drive chain |
| 3 | Drive chain driven sprocket |
| 4 | Final drive planetary sun gear |
| 5 | Differential assembly |
| 6 | Final drive planetary ring gear |
| 7 | Torque converter housing |

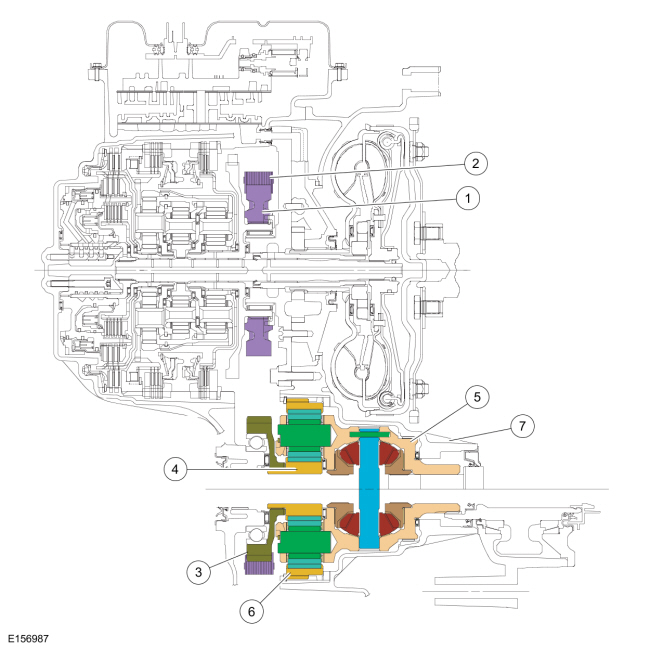

Final Drive Component Cutaway View
Final Drive Chain, Sprockets and Planetary Gearset
The final drive consists of a drive chain and sprockets and a planetary gearset and differential assembly. The drive chain and sprockets transfer torque from the front planetary carrier hub to the differential assembly that has a planetary gearset integrated into it for final drive torque multiplication.
The final drive consists of the following components:
- Drive sprocket
- Drive chain
- Driven sprocket
- Final drive sun gear
- Final drive ring gear
- Final drive planetary carrier and differential assembly
Differential. Description and Operation
Differential Exploded View
Item
Description
1
Differential housing
2
Pinion shaft
3
Pinion gears
4
Side gears
Differential Cutaway View and External Sealing
Item
Description
1
LH halfshaft seal
2
RH halfshaft seal FWD ..
