Ford Fusion: Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Oil Cooler. Removal and Installation

Special Tool(s) / General Equipment

Strap Wrench
Oil Drain Equipment
Locking Pliers

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1

Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B
WSS-M97B44-D2

Motorcraft® Orange Concentrated Antifreeze/Coolant
VC-3-B
WSS-M97B44-D


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

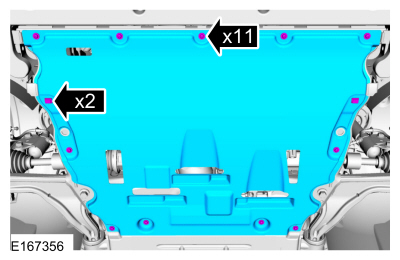

  1. Remove the retainers and the engine undershield.
Ford Fusion. Oil Cooler. Removal and Installation
  1. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

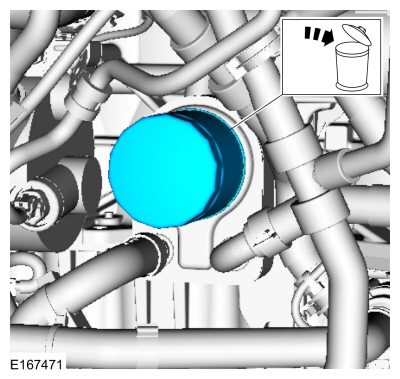

    Remove and discard the engine oil filter.
    Use the General Equipment: Oil Drain Equipment
    Use the General Equipment: Strap Wrench
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
    Torque: 128 lb.in (14.5 Nm)
Ford Fusion. Oil Cooler. Removal and Installation

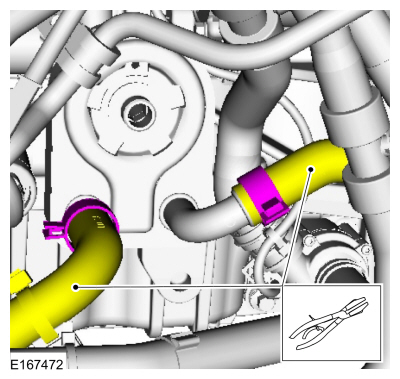

    • Using hose locking pliers, clamp the oil cooler coolant hoses.
      Use the General Equipment: Locking Pliers
    • Disconnect the coolant hoses.
Ford Fusion. Oil Cooler. Removal and Installation
  1. NOTICE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure.

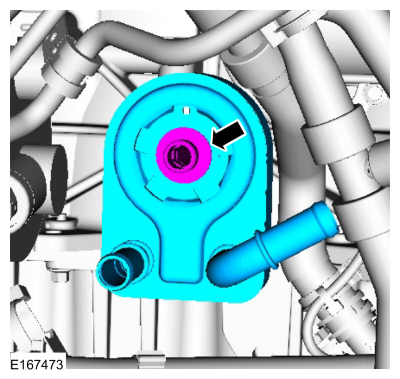

    • Remove the retainer and the engine oil cooler.
      Torque: 41 lb.ft (55 Nm)
    • To diagnose mechanical concerns.
      Refer to: Engine (303-00 Engine System - General Information, Diagnosis and Testing).
      Use the General Equipment: Oil Drain Equipment
Ford Fusion. Oil Cooler. Removal and Installation

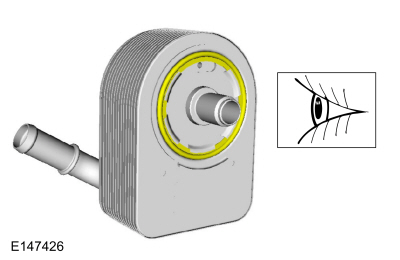

  1. Inspect the oil cooler seal.
Ford Fusion. Oil Cooler. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Inspect and adjust the engine oil level.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
  1. Inspect and adjust the engine coolant level.
    Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)
    Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
