Ford Fusion: Cruise Control / Cruise Control Module (CCM). Removal and Installation
Ford Fusion 2013–2020 Service Manual / Electrical / Electronic Feature Group / Cruise Control / Cruise Control Module (CCM). Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-
-

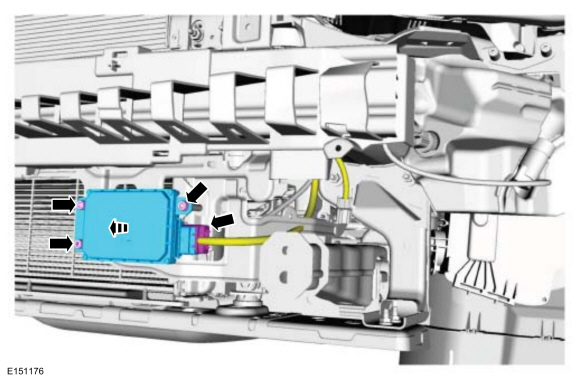

Disconnect the electrical connector.
-
Release the CCM grommets from the ball studs.
-
Remove the CCM.
-
To install, align the CCM after installation.
Refer to: Cruise Control Radar Alignment (419-03A Cruise Control, General Procedures).
-
Disconnect the electrical connector.
 |
-
Remove the active grille shutter.
Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).
-

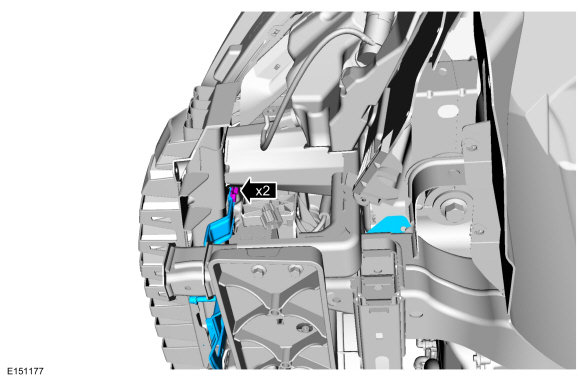

Remove the CCM bracket bolts.
Torque: 20 lb.ft (27 Nm)
 |
-
Remove the CCM bracket.
-

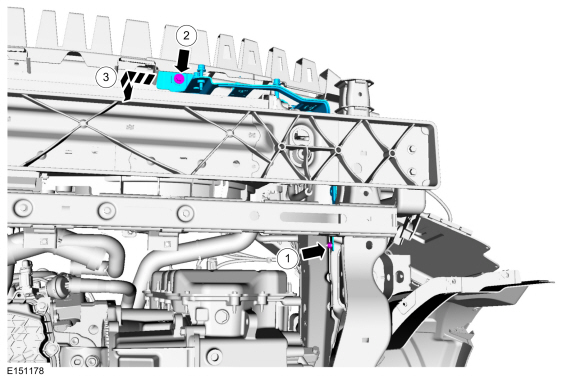

Remove the CCM bracket nut.
Torque: 80 lb.in (9 Nm)
-
Remove the CCM bracket bolt.
Torque: 80 lb.in (9 Nm)
-
Slide the CCM bracket out of the front bumper slot.
-
Remove the CCM bracket nut.
 |
Installation
-
To install, reverse the removal procedure.
