Ford Fusion: Climate Control System - General Information / Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the instrument panel upper section.
    Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

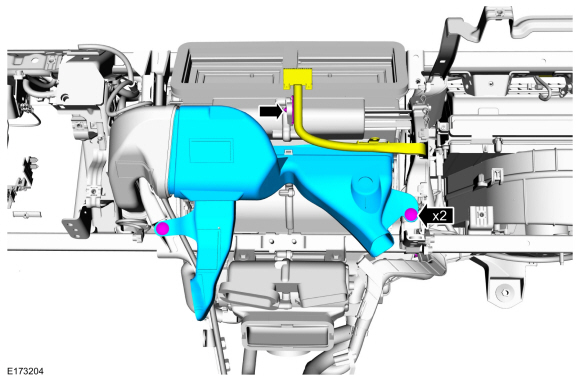

  1. Detach the wiring harness retainer, remove the nuts and the instrument panel upper brace.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

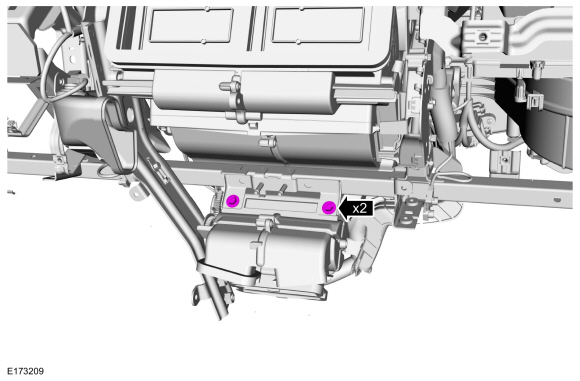

  1. Detach the wiring harness retainer, remove the retainers and the center footwell vent duct.
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

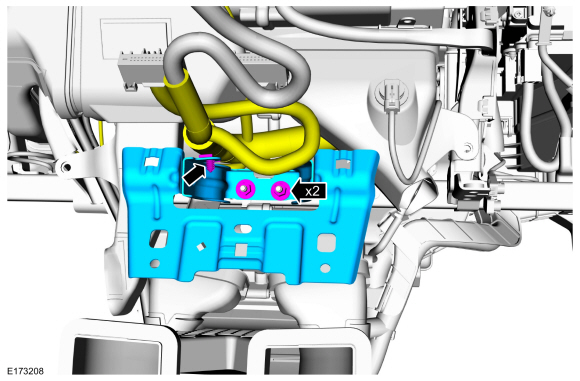

  1. Disconnect the blower motor speed control electrical connectors.
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

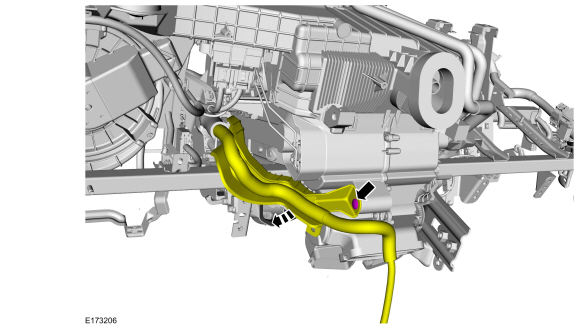

  1. Detach the wiring harness retainers and position the wiring harness aside.
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

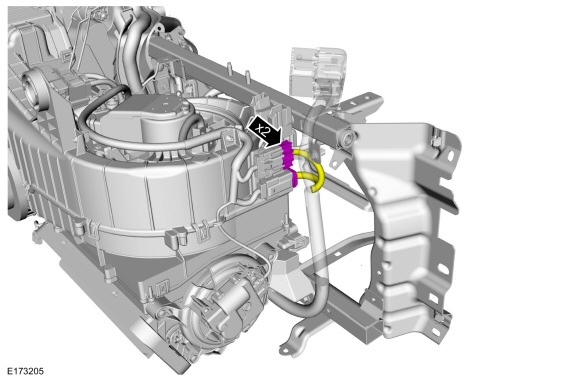

  1. Remove the retainer and position the wiring harness bracket aside.
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

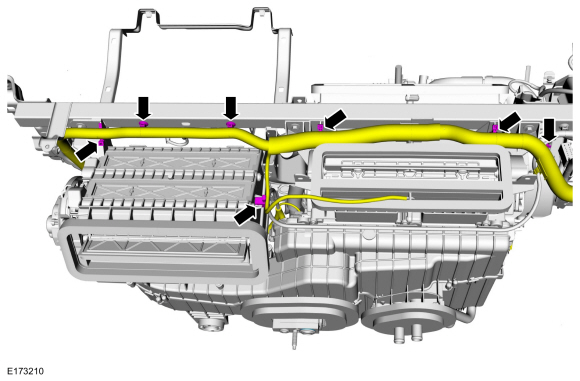

  1. Remove the climate control housing bolts.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

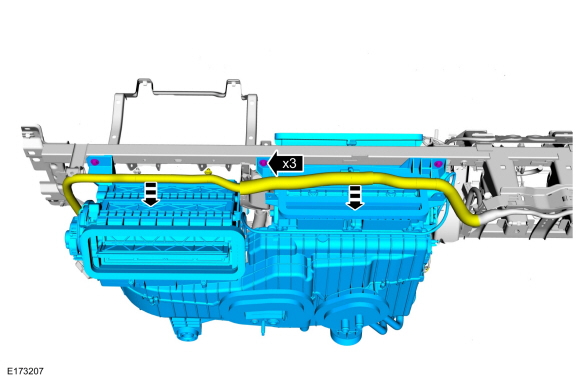

  1. Position the instrument panel wiring harness aside, remove the bolts and the climate control housing.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Electronic Manual Temperature Control (EMTC). Removal and Installation

Installation

  1. To install, reverse the removal procedure.
