Ford Fusion: Climate Control System - General Information / Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the instrument panel upper section.
    Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

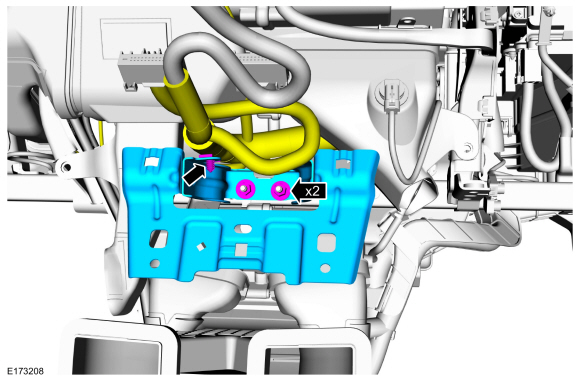

  1. Detach the wiring harness retainer, remove the nuts and the instrument panel upper brace.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

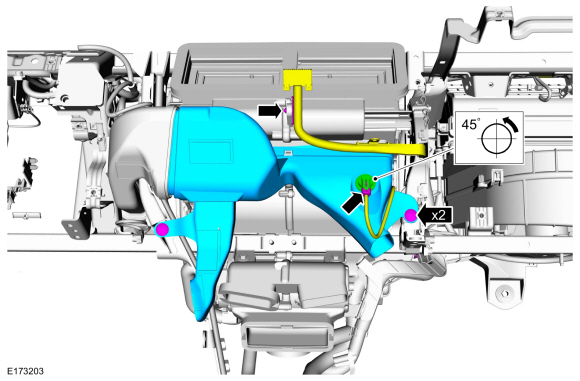

  1. Disconnect the electrical connector, remove the passenger side footwell air discharge temperature sensor and detach the wiring harness retainer. Remove the retainers and the center footwell duct.
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

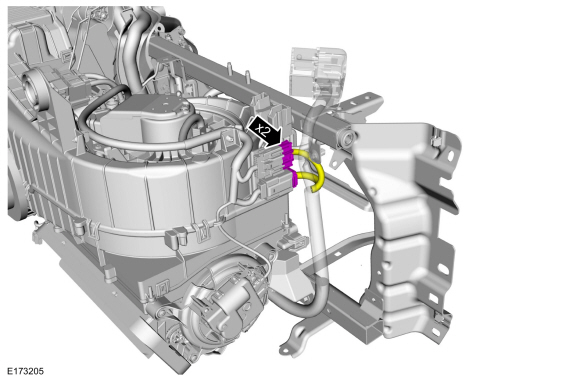

  1. Disconnect the blower motor speed control electrical connectors.
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

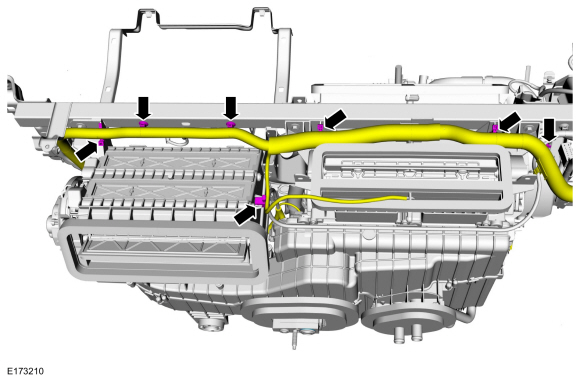

  1. Detach the wiring harness retainers and position the wiring harness aside.
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

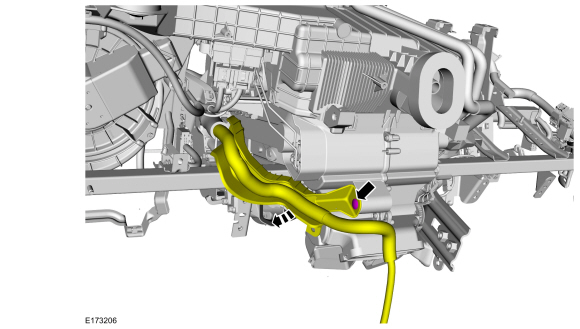

  1. Remove the retainer and position the wiring harness bracket aside.
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

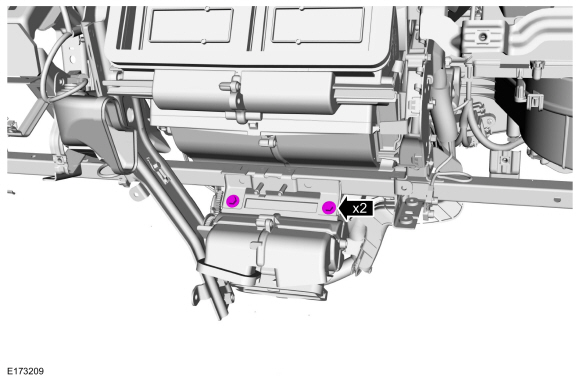

  1. Remove the climate control housing bolts.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

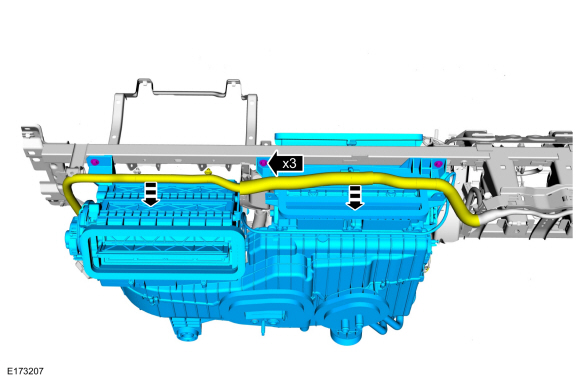

  1. Position the instrument panel wiring harness aside, remove the bolts and the climate control housing.
    Torque: 133 lb.in (15 Nm)
Ford Fusion. Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC). Removal and Installation

Installation

  1. To install, reverse the removal procedure.
