Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Remove the door trim panel and water shield.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the rear door.
    Refer to: Rear Door (501-03 Body Closures, Removal and Installation).

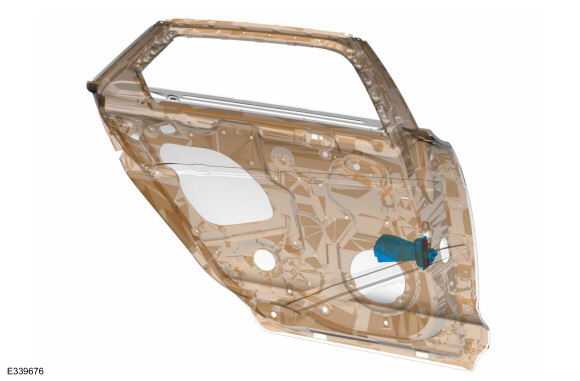

  1. Remove the fasteners and the rear door check arm.
Ford Fusion. Rear Door Check Arm. Removal and Installation

Installation

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Install the rear door check arm and fasteners.
    Torque: 80 lb.in (9 Nm)
Ford Fusion. Rear Door Check Arm. Removal and Installation
  1. Install and align the door.
    Refer to: Rear Door (501-03 Body Closures, Removal and Installation).
    Refer to: Rear Door Alignment (501-03 Body Closures, General Procedures).
  1. Install the water shield and door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
