Ford Fusion: Climate Control System - General Information / Center Registers. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Center Registers. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the FCIM.
    Refer to: Front Controls Interface Module (FCIM) (415-00 Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System) .

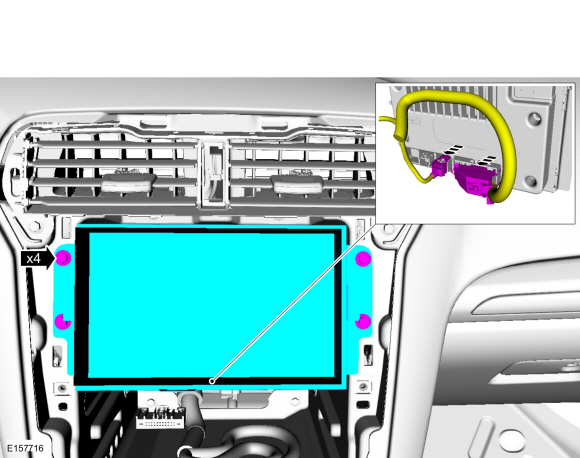

  1. Remove the bolts and the FDIM. Disconnect the electrical connectors.
    Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Center Registers. Removal and Installation

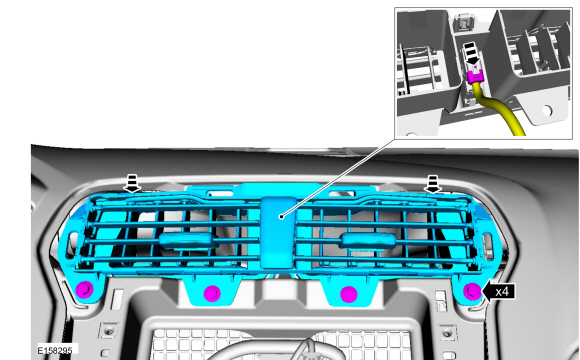

  1. Remove the bolts and the center register. Disconnect the electrical connector.
    Torque: 22 lb.in (2.5 Nm)
Ford Fusion. Center Registers. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
