Ford Fusion: Engine - 1.5L EcoBoost (118kW/160PS) – I4 / Camshaft Seal. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Camshaft Seal. Removal and Installation 303-1532
Installer, Camshaft Seal
TKIT-2010B-FLM
TKIT-2010B-ROW
Ford Fusion. Camshaft Seal. Removal and Installation 303-409 (T92C-6700-CH)
Remover, Crankshaft Seal
TKIT-1992-FH/FMH/FLMH
TKIT-1993-LMH/MH

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

  1. Remove the VCT unit.
    Refer to: Variable Camshaft Timing (VCT) Unit (303-01A Engine - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
  1. Using the special tool, remove and discard the camshaft seals.
    Use Special Service Tool: 303-409 (T92C-6700-CH)  Remover, Crankshaft Seal.
Ford Fusion. Camshaft Seal. Removal and Installation

Installation

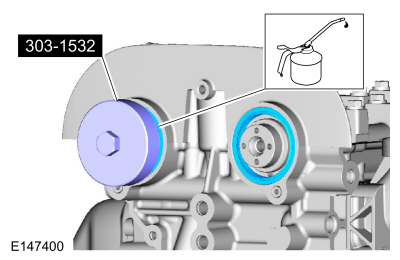

  1. Using the special tool, install the new camshaft seals.
    Use Special Service Tool: 303-1532  Installer, Camshaft Seal.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Ford Fusion. Camshaft Seal. Removal and Installation
  1. Install the VCT unit.
    Refer to: Variable Camshaft Timing (VCT) Unit (303-01A Engine - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).

    Camshafts. Removal and Installation

    S..

    Crankshaft Front Seal. Removal and Installation

    Special Tool(s) / General Equipment 100-001 (T50T-100-A) Slide Hammer 303-175 (T82L-6316-A) Installer, Crankshaft Vibration DamperTKIT-1982-F 303-335 (T88T-6701-A) Installer, Front Cover Oil SealTKIT-1988-FLMTKIT-1988-F 303-420 (T92P-6701-BH) Installer, Crankshaft Front Oil SealTKIT-1992-FLMH/LMHTKIT-1992-LMH/MH 308-375Remover, Input Shaft SealTKIT-2005U-..
