Ford Fusion: Front Disc Brake / Brake Caliper Anchor Plate - 2.7L EcoBoost (238kW/324PS). Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Front Disc Brake / Brake Caliper Anchor Plate - 2.7L EcoBoost (238kW/324PS). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

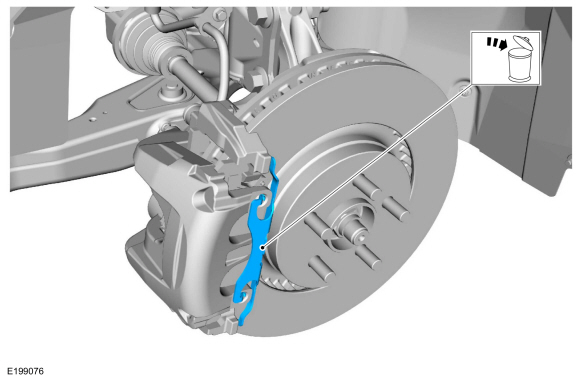

  1. Remove and discard the brake caliper spring.
Ford Fusion. Brake Caliper Anchor Plate - 2.7L EcoBoost (238kW/324PS). Removal and Installation

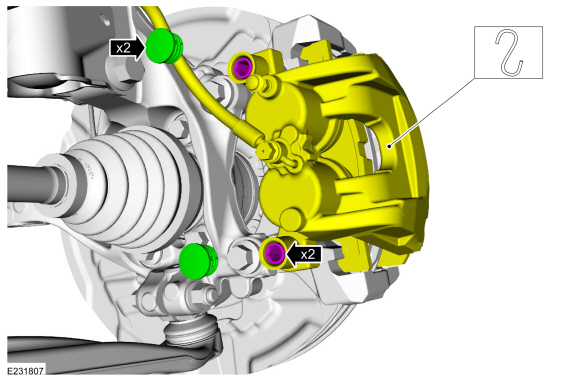

  1. NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

    NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the covers, the guide pins and position the brake caliper aside.
    Torque: 41 lb.ft (55 Nm)
Ford Fusion. Brake Caliper Anchor Plate - 2.7L EcoBoost (238kW/324PS). Removal and Installation

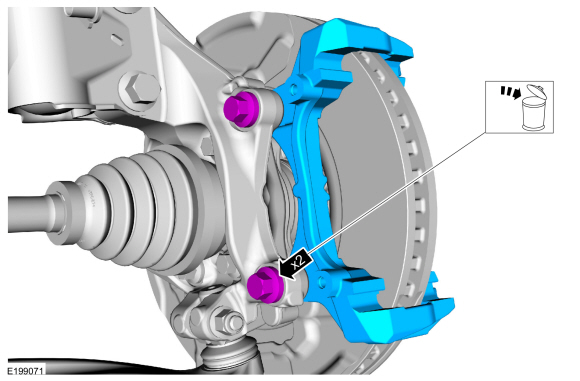

  1. Remove the bolts and the brake caliper anchor plate. Discard the bolts.
    Torque: 122 lb.ft (165 Nm)
Ford Fusion. Brake Caliper Anchor Plate - 2.7L EcoBoost (238kW/324PS). Removal and Installation

Installation

  1. NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.

    To install, reverse the removal procedure.
