Removal

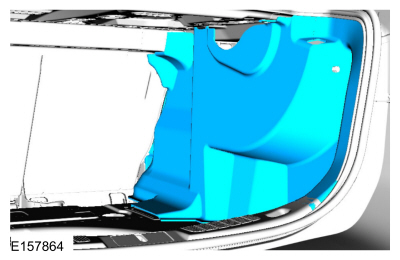

  1. Release the clips and remove the loadspace trim panel.
Ford Fusion. All-Wheel Drive (AWD) Module. Removal and Installation

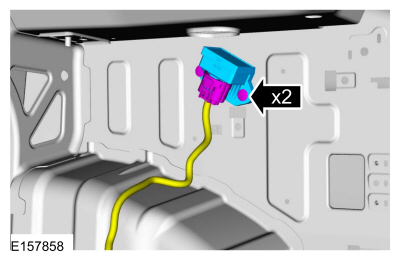

    • Disconnect the AWD module electrical connector.
    • Remove the AWD module push pin fasteners and the AWD module.
Ford Fusion. All-Wheel Drive (AWD) Module. Removal and Installation

Installation

    • Install the AWD module and the push pin fasteners.
    • Connect the AWD module electrical connector.
Ford Fusion. All-Wheel Drive (AWD) Module. Removal and Installation
  1. Install the loadspace trim panel.
