Ford Fusion: Rear Suspension / Wheel Bearing and Wheel Hub - AWD. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Suspension / Rear Suspension / Wheel Bearing and Wheel Hub - AWD. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation 205-D070 (D93P-1175-B)
Remover, Front Wheel Hub

Removal

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

  1. Remove the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. Remove and discard the wheel hub nut.
Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation

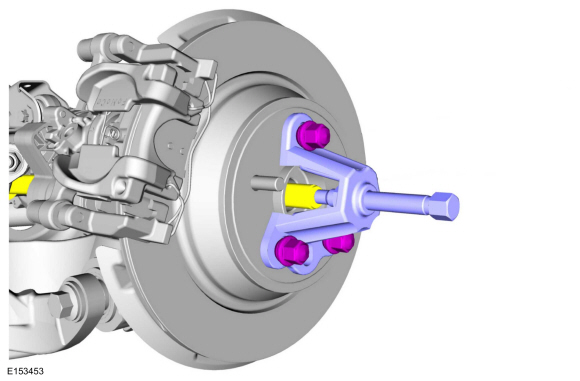

  1. Install the special tool and press the halfshaft from the rear wheel bearing and wheel hub.
    Use Special Service Tool: 205-D070 (D93P-1175-B)  Remover, Front Wheel Hub.
Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation
  1. Remove the brake disc.
    Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).
  1. Remove and discard the wheel bearing and wheel hub retainers and remove the wheel bearing and wheel hub.
Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation

Installation

  1. Install the wheel bearing and wheel hub and install the new wheel bearing and wheel hub retainers.
    Torque: 98 lb.ft (133 Nm)
Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation
  1. Install the brake disc.
    Refer to: Brake Disc (206-04 Rear Disc Brake, Removal and Installation).

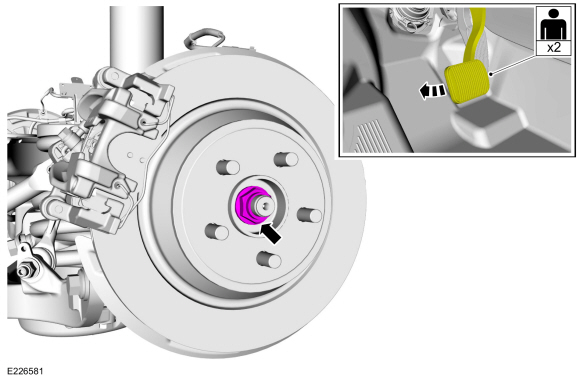

  1. NOTE: Apply the brake to keep the halfshaft from rotating.

    Install the new wheel hub nut.
    Torque: 148 lb.ft (200 Nm)
Ford Fusion. Wheel Bearing and Wheel Hub - AWD. Removal and Installation
  1. Install the wheel and tire.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
