Ford Fusion: Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Turbine Shaft Speed (TSS) Sensor. Removal and Installation
Ford Fusion 2013–2020 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 6-Speed Automatic Transmission – 6F35 / Turbine Shaft Speed (TSS) Sensor. Removal and Installation
Removal
-
Remove the air cleaner.
Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering - 1.5L EcoBoost (118kW/160PS) – I4, Removal and Installation).
Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - 2.0L EcoBoost (184kW/250PS) – MI4, Removal and Installation).
Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.5L Duratec (125kW/170PS), Removal and Installation).
-
Disconnect the TSS sensor electrical connector.
 |
-

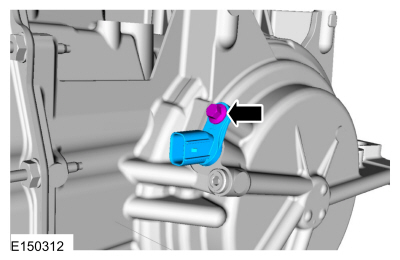

Remove the TSS bolt and the TSS sensor.
Torque: 89 lb.in (10 Nm)
 |
Installation
-
To install, reverse the removal procedure.
