Removal

NOTE: Roof removed for clarity.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Depower the SRS.
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B) .
  1. Remove the roof opening panel frame.
    Refer to: Roof Opening Panel Frame (501-17 Roof Opening Panel, Removal and Installation).

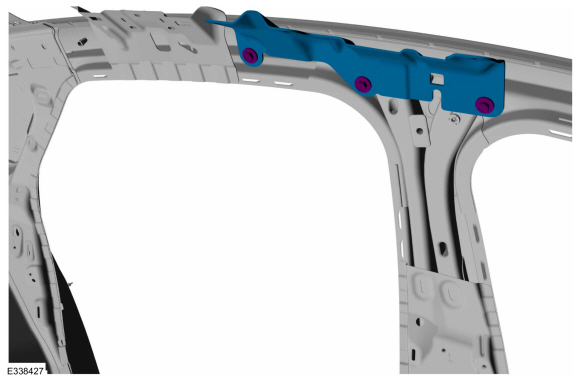

  1. Remove the reinforcement.
Ford Fusion. Roof Reinforcement - Vehicles With: Roof Opening Panel. Removal and Installation

Installation

NOTE: Roof removed for clarity.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1. Install the reinforcement.
    Torque: 20 lb.ft (27 Nm)
Ford Fusion. Roof Reinforcement - Vehicles With: Roof Opening Panel. Removal and Installation
  1. Install the roof opening panel and frame.
    Refer to: Roof Opening Panel Frame (501-17 Roof Opening Panel, Removal and Installation).
    Refer to: Roof Opening Panel Glass (501-17 Roof Opening Panel, Removal and Installation).
  1. Repower the SRS.
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B) .
