Ford Fusion: Roof Opening Panel / Roof Opening Panel Blind. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Roof Opening Panel / Roof Opening Panel Blind. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Roof Opening Panel Blind. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the air deflector.
    Refer to: Air Deflector (501-17 Roof Opening Panel, Removal and Installation).
  1. On both sides.
    Detach and remove the top portion of the roof opening panel blind.
Ford Fusion. Roof Opening Panel Blind. Removal and Installation
  1. On both sides.
    Slide the roof opening panel blind forward and up out of the guide track.
Ford Fusion. Roof Opening Panel Blind. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. On both sides.

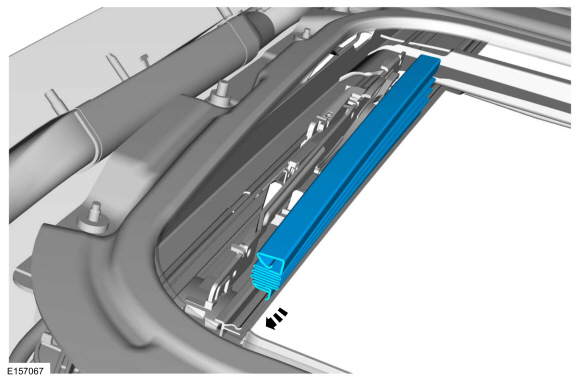

    Slide the roof opening panel blind rearward into the guide track.
Ford Fusion. Roof Opening Panel Blind. Removal and Installation
