Ford Fusion: Seats / Rear Seats

Ford Fusion 2013–2020 Owners Manual / Seats / Rear Seats

Note: Your vehicle may have split seatbacks that you must fold individually.

Note: Make sure the center safety belt is unbuckled before folding the seatback.

To lower the seat back(s) from inside the vehicle, do the following:

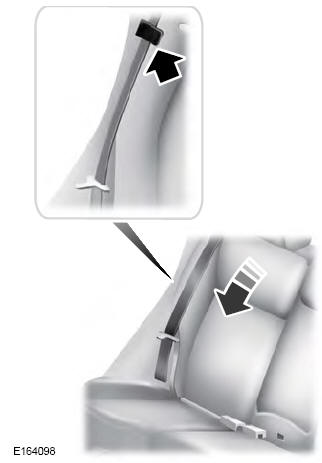

Ford Fusion. Rear Seats

Pull the handle to release the seatback.
Push the seatback forward.
Stow the safety belt in the stowage clip. This will prevent the safety belt from getting caught in the seat latch.

When raising the seat back(s), make sure you hear the seat latch into place.
