Ford Fusion: Suspension System - General Information / Rear Camber Adjustment. General Procedures

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

  1. Using alignment equipment and the manufacturer's instructions, measure the rear camber.
    Use the General Equipment: Wheel Alignment System

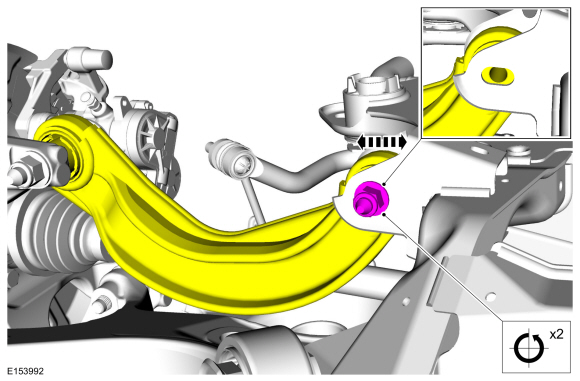

  1. Turn the component Counterclockwise (CCW) through 2 complete turns.
    Torque: 136 lb.ft (185 Nm)
Ford Fusion. Rear Camber Adjustment. General Procedures
  1. Recheck alignment to verify camber change and adjust rear toe if necessary.
    Refer to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
