Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit Fluid Level Check. General Procedures

Ford Fusion 2013–2020 Service Manual / Powertrain / Four-Wheel Drive Systems / Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit Fluid Level Check. General Procedures

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

If equipped.

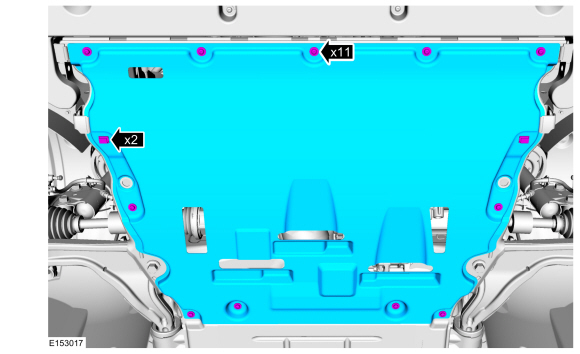

Remove the retainers and the underbody shield.

Ford Fusion. Power Transfer Unit Fluid Level Check. General Procedures

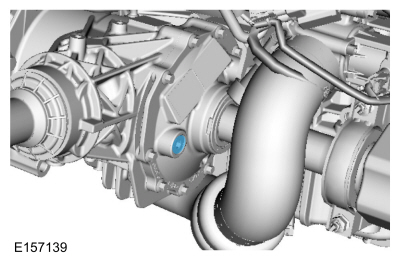

Remove the PTU fill plug.

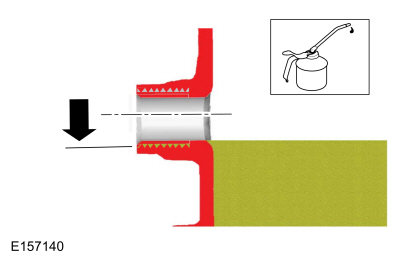

Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

If equipped.
Install the underbody shield.
