Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Power Transfer Unit Draining and Filling. General Procedures

Materials

Name Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
XY-75W140-QL
WSL-M2C192-A


Draining

  1. With the vehicle in NEUTRAL, position it on hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

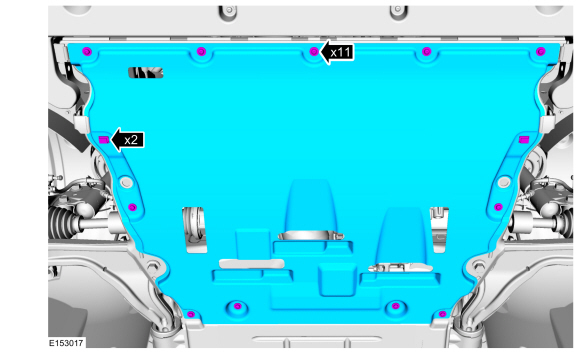

  1. If equipped.
    Remove the retainers and the underbody shield.
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures

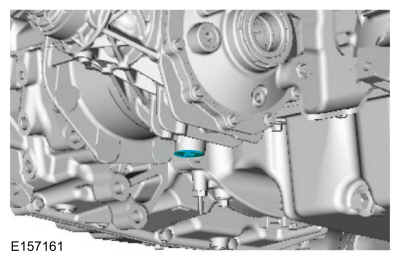

  1. Remove the PTU drain plug.
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures
  1. Install the PTU drain plug.
    Torque: 33 lb.ft (45 Nm)
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures

Filling

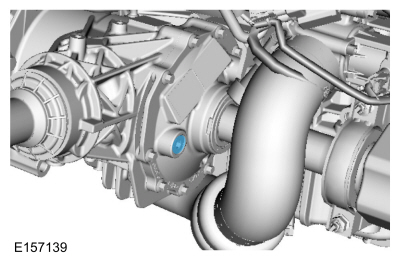

  1. Remove the PTU fill plug.
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures

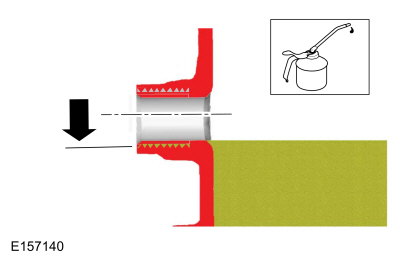

  1. Fill the PTU with clean fluid, level with the fill plug opening.
    Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures
  1. Install the PTU fill plug.
    Torque: 33 lb.ft (45 Nm)
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures
  1. If equipped.
    Install the underbody shield.
Ford Fusion. Power Transfer Unit Draining and Filling. General Procedures
