Ford Fusion: Climate Control System - General Information / Passenger Side Register. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Passenger Side Register. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).

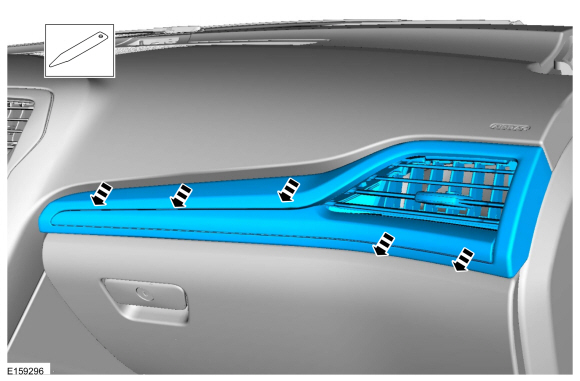

Remove the passenger side register assembly.
Use the General Equipment: Interior Trim Remover

Installation

To install, reverse the removal procedure.

Passenger Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...
