Ford Fusion: Climate Control System - General Information / Passenger Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Climate Control System / Climate Control System - General Information / Passenger Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Passenger Side Footwell Air Discharge Temperature Sensor. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the ACM.
    Refer to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC) .
    Refer to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information - Vehicles With: SYNC 3, Removal and Installation).
    Refer to: Audio Front Control Module (ACM) (415-00 Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Sony Audio System) .

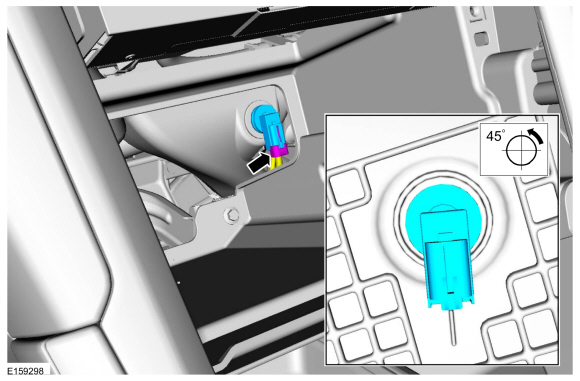

  1. Disconnect the electrical connector and remove the passenger side footwell air discharge temperature sensor.
Ford Fusion. Passenger Side Footwell Air Discharge Temperature Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
