Ford Fusion: Interior Trim and Ornamentation / D-Pillar Trim Panel. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

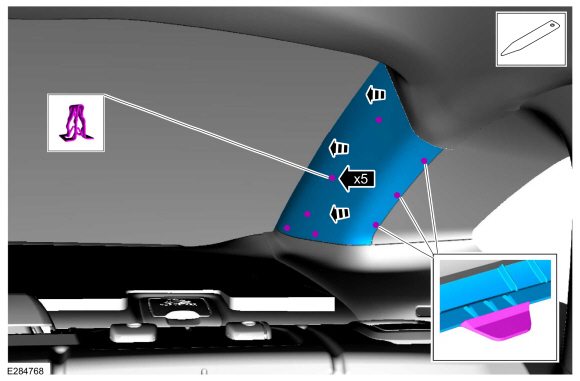

  1. Release the clips and remove the D-pillar trim panel.
    Use the General Equipment: Interior Trim Remover
Ford Fusion. D-Pillar Trim Panel. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    C-Pillar Lower Trim Panel. Removal and Installation

    Removal NOTE: RH side shown, LH side similar.   WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...

    Front Door Trim Panel. Removal and Installation

    Removal NOTE: LH shown, RH similar. NOTE: Removal steps in this procedure may contain installation details. Release the tabs and remove the door trim panel cover...
