Ford Fusion: Interior Trim and Ornamentation / C-Pillar Lower Trim Panel. Removal and Installation

Removal

NOTE: RH side shown, LH side similar.

  1. Ford Fusion. C-Pillar Lower Trim Panel. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

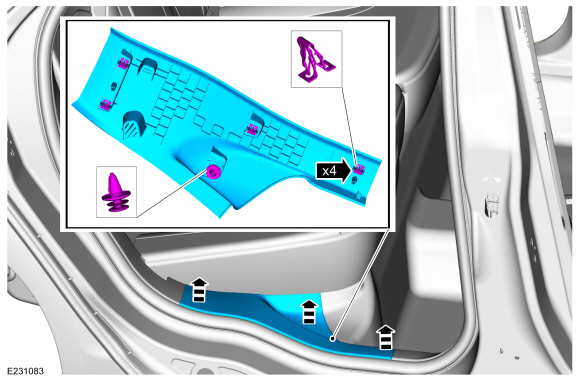

  1. Release the clips and remove the rear door scuffplate trim panel.
Ford Fusion. C-Pillar Lower Trim Panel. Removal and Installation

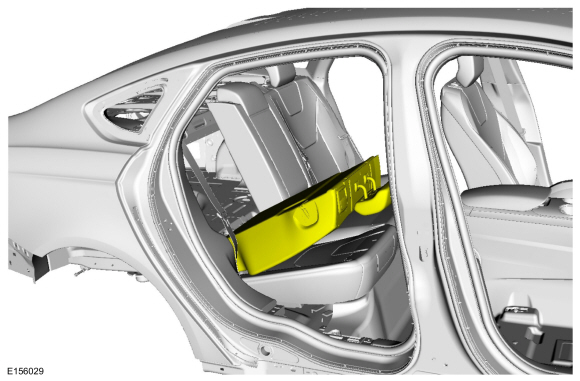

  1. Position the rear seat backrest in the fold flat position.
Ford Fusion. C-Pillar Lower Trim Panel. Removal and Installation
    1. Position aside the rear door weatherstrip.
    1. Release the clip.
    1. Release the clip.
    1. Release the clips.
    1. If equipped.

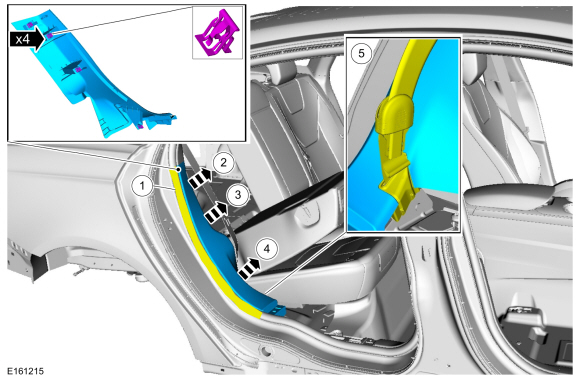

      Position aside the rear safety belt and remove the C-pillar lower trim panel.
Ford Fusion. C-Pillar Lower Trim Panel. Removal and Installation

Installation

  1. To install, reverse the removal procedure.

    C-Pillar Upper Trim Panel. Removal and Installation

    Removal NOTE: RH side shown, LH side similar. NOTE: Removal steps in this procedure may contain installation details. Remove the C-pillar lower trim panel...

    D-Pillar Trim Panel. Removal and Installation

    Special Tool(s) / General Equipment Interior Trim Remover Removal Release the clips and remove the D-pillar trim panel. Use the General Equipment: Interior Trim Remover Installation To install, reverse the removal procedure...
