Ford Fusion: Lane Keeping System / Lane Keeping System - Component Location. Description and Operation

Ford Fusion 2013–2020 Service Manual / Electrical / Electronic Feature Group / Lane Keeping System / Lane Keeping System - Component Location. Description and Operation

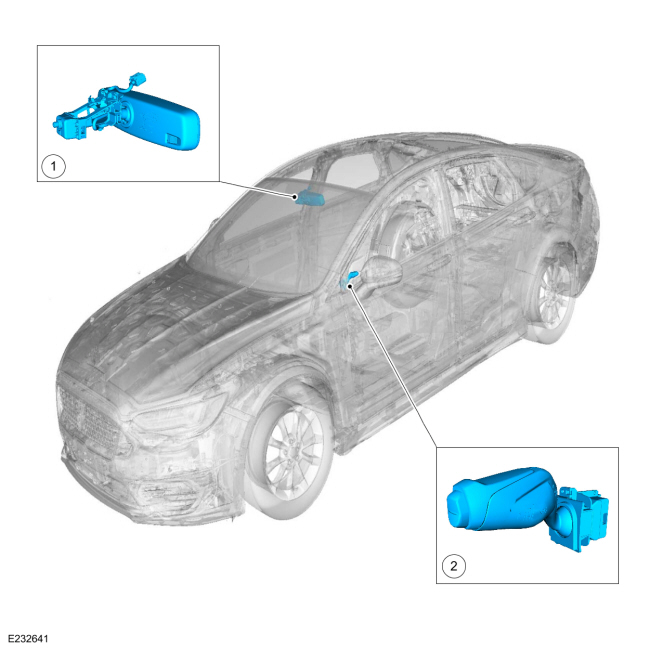

Component Location - Lane Keeping System

Ford Fusion. Lane Keeping System - Component Location. Description and Operation
Item Description
1 IPMA (integral to the interior rear view mirror)
2 Lane Keeping System (LKS) switch (integral to the LH steering column multifunction switch)

    Lane Keeping System

    ..

    Lane Keeping System - Overview. Description and Operation

    Overview The Lane Keeping System (LKS) has 2 functions, lane keeping aid and lane keeping alert. The Lane Keeping System (LKS) utilizes the camera located in the IPMA to detect and track the road lane markings...
