Ford Fusion: Power Transfer Unit - 6-Speed Automatic Transmission – 6F35 / Intermediate Shaft Seal. Removal and Installation

Special Tool(s) / General Equipment

Ford Fusion. Intermediate Shaft Seal. Removal and Installation 205-907
Handle, 32 Driver
TKIT-2008DH-FLM
Ford Fusion. Intermediate Shaft Seal. Removal and Installation 307-256 (T92P-77000-FH)
Installer, Differential Fluid Seal
TKIT-1992-FLMH/LMH
Puller

Removal

  1. Remove the RH halfshaft.
    Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

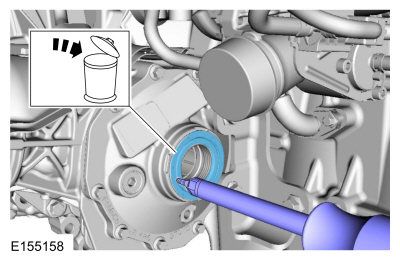

  1. Using the puller, remove and discard the intermediate shaft seal.
    Use the General Equipment: Puller
Ford Fusion. Intermediate Shaft Seal. Removal and Installation

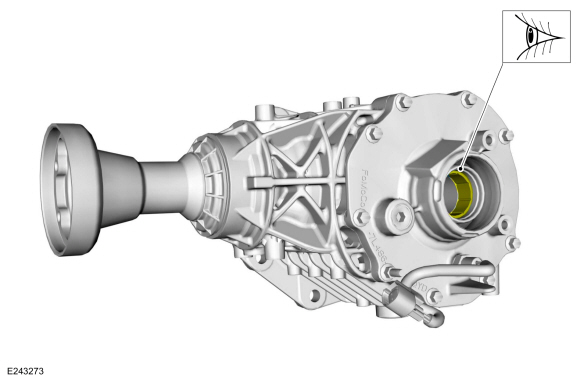

  1. Inspect the intermediate shaft bushing. Replace if necessary.
    Refer to: Intermediate Shaft Bushing (308-07B Power Transfer Unit - 6-Speed Automatic Transmission – 6F35, Removal and Installation).
Ford Fusion. Intermediate Shaft Seal. Removal and Installation

Installation

  1. NOTE: The seal is correctly installed if it is flush with the transfer case cover.

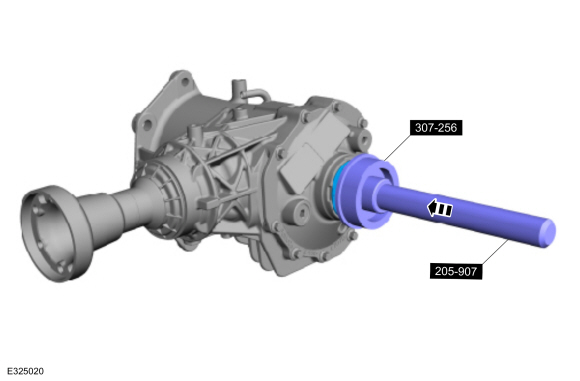

    Using the special tools, install a new intermediate shaft seal.
    Use Special Service Tool: 307-256 (T92P-77000-FH)  Installer, Differential Fluid Seal. , 205-907  Handle, 32 Driver.
Ford Fusion. Intermediate Shaft Seal. Removal and Installation
  1. Install the RH halfshaft.
    Refer to: Front Halfshaft RH (205-04 Front Drive Halfshafts, Removal and Installation).

    Intermediate Shaft Bushing. Removal and Installation

    Special Tool(s) / General Equipment 308-125Remover, Transfer Case BearingTKIT-1987-LMTKIT-1987-FLM Slide Hammer Removal Remove the intermediate shaft seal...

    Power Transfer Unit Input Shaft Seal. Removal and Installation

    Special Tool(s) / General Equipment 205-153 (T80T-4000-W) Handle 308-875Installer, Inboard Cover SealTKIT-2012A-FLTKIT-2012A-ROW 308-878Installer, Input SealTKIT-2012A-FLTKIT-2012A-ROW Removal Remove the PTU/transfer case...
