Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Intake Air Temperature 2 (IAT2) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

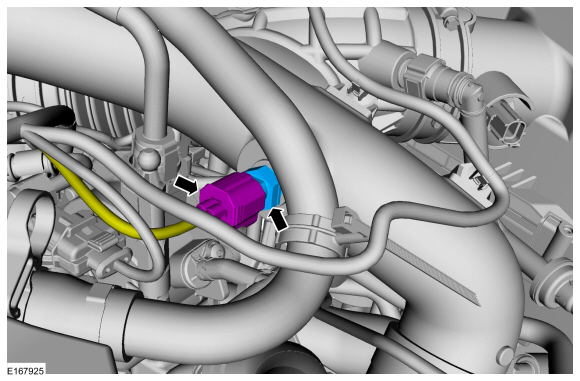

  1. Disconnect the IAT sensor electrical connector and remove the IAT sensor.
    Torque: 124 lb.in (14 Nm)
Ford Fusion. Intake Air Temperature 2 (IAT2) Sensor. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
