Ford Fusion: Engine Ignition - 1.5L EcoBoost (118kW/160PS) – I4 / Ignition Coil-On-Plug. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    1. Detach the wiring harness retainers.
    1. NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

      Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
    1. Remove the ignition coil-on-plug retainers.
      Torque: 89 lb.in (10 Nm)
    1. Remove the ignition coil-on-plugs.
Ford Fusion. Ignition Coil-On-Plug. Removal and Installation

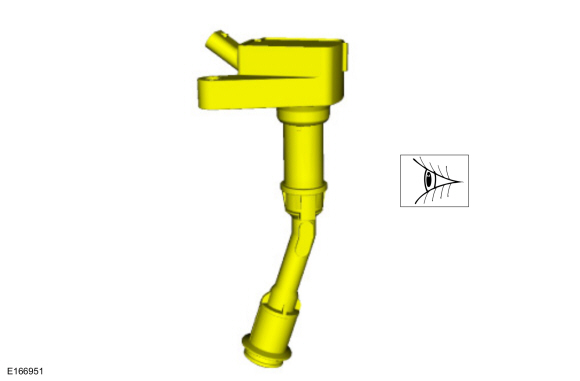

  1. Inspect the coil-on-plug assemblies and replace any coil-on-plug assemblies with cracks, rips, or tears.
Ford Fusion. Ignition Coil-On-Plug. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
