Ford Fusion: Climate Control System - General Information / Heater Core. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the climate control housing - vehicles with: DATC.
    Refer to: Climate Control Housing - Vehicles With: Dual Automatic Temperature Control (DATC) (412-00 Climate Control System - General Information, Removal and Installation).
  1. Disconnect the passenger side temperature door actuator electrical connector.
Ford Fusion. Heater Core. Removal and Installation

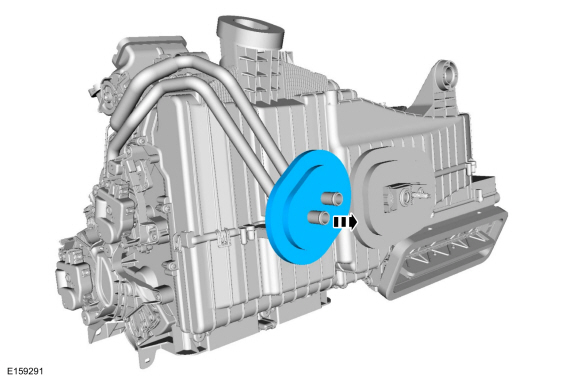

  1. Remove the heater tube dash panel seal.
Ford Fusion. Heater Core. Removal and Installation

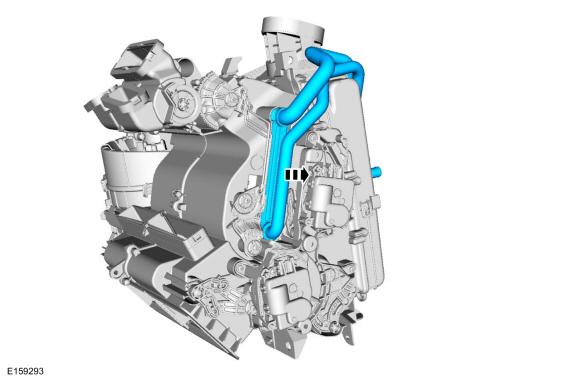

  1. Remove the retainers, release the clip and position the heater tube bracket aside.
Ford Fusion. Heater Core. Removal and Installation

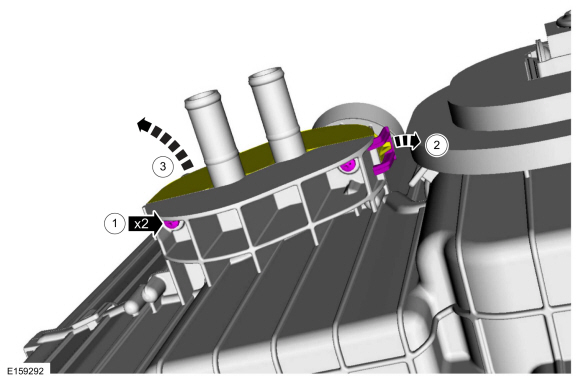

  1. Remove the heater core.
Ford Fusion. Heater Core. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
