Ford Fusion: Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel System Pressure Release. General Procedures

Pressure release

  1. Ford Fusion. Fuel System Pressure Release. General Procedures  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the left lower C-Pillar trim.
    Refer to: C-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

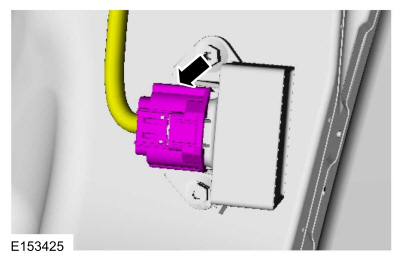

  1. Disconnect the FPDM electrical connector.
Ford Fusion. Fuel System Pressure Release. General Procedures
  1. NOTE: On vehicles equipped with Gasoline Turbocharged Direct Injection (GTDI), running the engine with the FPDM disconnected will remove most of the pressure from both the low and high pressure sides of the system.

    Start the engine and allow it to idle until the engine stalls.
  1. Turn the ignition switch to the off position.
  1. When the fuel system service is complete, reconnect the FPDM electrical connector.
Ford Fusion. Fuel System Pressure Release. General Procedures
  1. Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.

    Fuel System Pressure Check. General Procedures

    Special Tool(s) / General Equipment 310-D009 (D95L-7211-A) Fuel Pressure Test Kit Check   WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...

    Fuel Tank Draining. General Procedures

    Special Tool(s) / General Equipment 292-00004Fuel Tanker 100 GPM 310-102Fuel Draining HoseTKIT-2003A-FTKIT-2003A-FLM Draining   WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...
