Ford Fusion: Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4 / Fuel System Pressure Check. General Procedures

Special Tool(s) / General Equipment

Ford Fusion. Fuel System Pressure Check. General Procedures 310-D009 (D95L-7211-A)
Fuel Pressure Test Kit

Check

Ford Fusion. Fuel System Pressure Check. General Procedures  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

  1. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

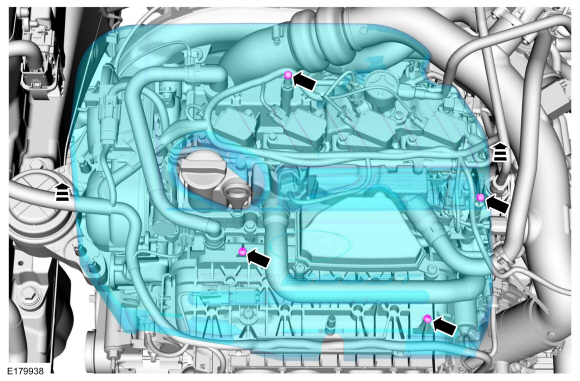

  1. Remove the engine cover.
Ford Fusion. Fuel System Pressure Check. General Procedures
  1. Disconnect the fuel jumper tube-to-high pressure fuel pump quick release coupling.
    Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.5L EcoBoost (118kW/160PS) – I4, General Procedures).

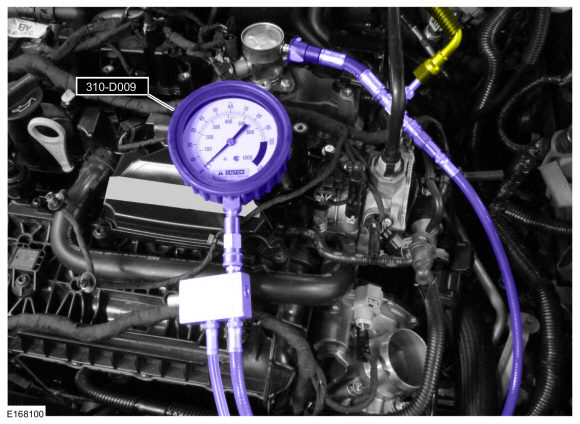

  1. Install the Fuel Pressure Test Kit between the fuel jumper tube and the fuel tube.
    Use Special Service Tool: 310-D009 (D95L-7211-A)  Fuel Pressure Test Kit.
Ford Fusion. Fuel System Pressure Check. General Procedures
  1. NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

    Reconnect the FPDM electrical connector.
  1. Connect the battery ground cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
  1. NOTE: Carry out a Key ON Engine OFF (KOEO) visual inspection for fuel leaks prior to completing the fuel system pressure test.

    NOTE: After completion of the fuel system pressure test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the tool.

    Test the fuel system pressure to make sure it is within the specified range. For additional information, refer to Specifications in this section.
