Ford Fusion: Exterior Lighting / Front Fog Lamp. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Lighting / Exterior Lighting / Front Fog Lamp. Removal and Installation

Removal

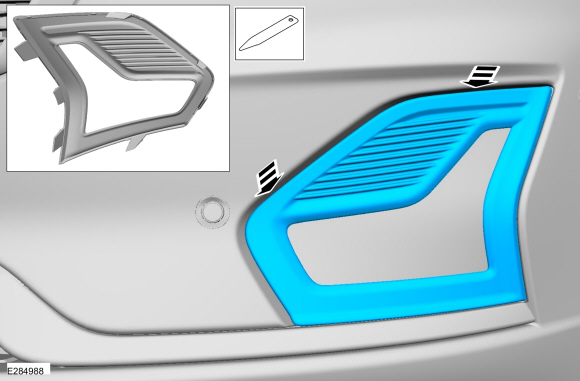

  1. Remove the fog lamp bezel.
Ford Fusion. Front Fog Lamp. Removal and Installation

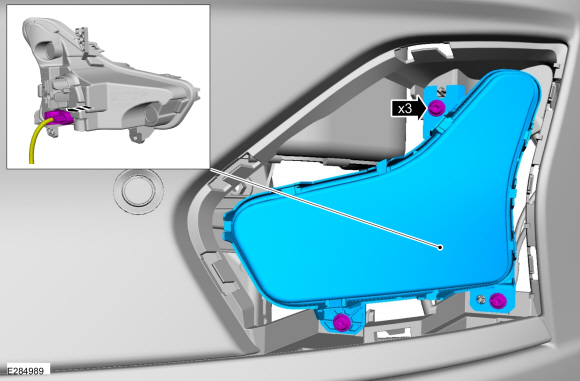

  1. Remove the screws and the fog lamp.
    • Disconnect the electrical connector.
Ford Fusion. Front Fog Lamp. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
  1. Adjust the foglamp assembly.
    Refer to: Front Fog Lamp Adjustment (417-01 Exterior Lighting, General Procedures).
