Ford Fusion: Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Engine Cooling - Component Location. Description and Operation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Engine Cooling - 1.5L EcoBoost (118kW/160PS) – I4 / Engine Cooling - Component Location. Description and Operation

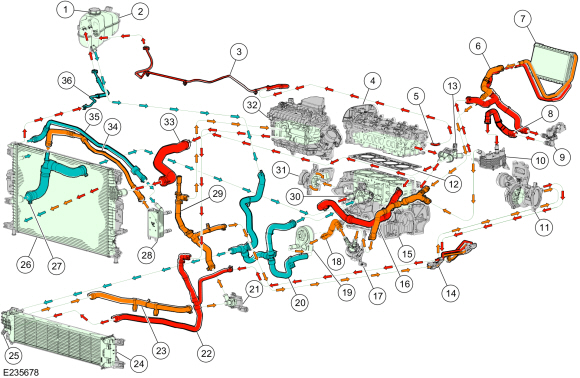

Ford Fusion. Engine Cooling - Component Location. Description and Operation

Item Part Number Description
1 81008100 Pressure relief cap
2 8A0808A080 Degas bottle
3 8A3658A365 Degas bottle-to-engine hose
4 60906090 Cylinder head
5 76107610 Cylinder head tube
6 18C26618C266 Heater hose assembly
7 18B53918B539 Heater core
8 7G0717G071 Transmission warmer inlet hose
9 1849518495 Transmission fluid heater coolant control valve
10 78697869 Transmission fluid warmer
11 6K6826K682 Turbocharger
12 60516051 Cylinder head gasket
13 8K5568K556 Coolant outlet adapter
14 9V4549V454 Turbocharger tube assembly
15 60106010 Cylinder block
16 18K58018K580 Heater outlet hose assembly
17 18D47318D473 Cabin heater coolant pump
18 6B8566B856 Oil cooler inlet hose
19 6B8566B856 Oil cooler
20 8C3518C351 Degas bottle return hose assembly
21 8C4198C419 Charge air cooler coolant pump
22 8C4818C481 Charge air cooler outlet hose
23 8B5048B504 Charge air cooler feed hose
24 8D0488D048 Charge air cooler radiator
25 12A64812A648 Charge air cooler coolant temperature sensor
26 80058005 Radiator
27 8B2738B273 Lower radiator hose
28 7A0957A095 Transmission oil cooler
29 8C4808C480 Charge air cooler inlet hose
30 9K4789K478 Thermostat housing
31 85018501 Coolant pump
32 9L4409L440 Charge air cooler
33 8B2748B274 Upper radiator hose
34 7F1207F120 Transmission cooler outlet hose
35 7G0717G071 Transmission cooler inlet hose
36 8W0058W005 Degas bottle-to-radiator hose


      Lubricants, Fluids, Sealants and Adhesives Vehicles Built On Or Before: 31-December-2019 Name Fill Capacity   Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)   10...

    Engine Cooling - System Operation and Component Description. Description and Operation

    System Operation Engine coolant flows primarily from the engine to the radiator circuit and back to the coolant pump. Coolant is sent from the coolant pump through the engine block and cylinder head...
