Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Electronic Engine Controls - Component Location. Description and Operation
Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Electronic Engine Controls - Component Location. Description and Operation
Electronic Engine Controls - LH
| Item | Description |
|---|---|
| 1 | PCM |
| 2 | VCT oil control solenoid intake |
| 3 | MAPT sensor |
| 4 | KS front |
| 5 | CAC coolant temperature sensor |
| 6 | KS rear |
| 7 | IAT sensor |
| 8 | Crankcase pressure sensor |
| 9 | Turbocharger boost pressure sensor |
| 10 | IAT2 |
| 11 | CMP sensor LH intake |
| 12 | FRP sensor |

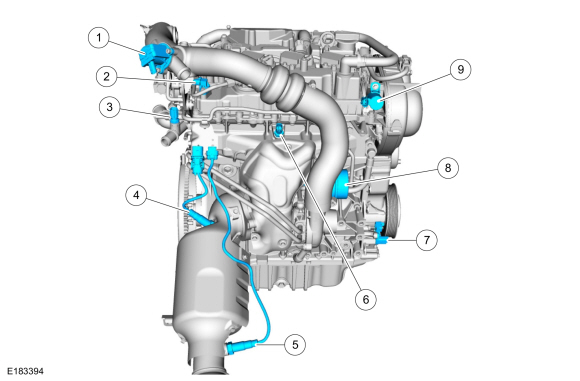

Electronic Engine Controls - RH
| Item | Description |
|---|---|
| 1 | Turbocharger bypass valve solenoid |
| 2 | CMP sensor RH exhaust |
| 3 | ECT sensor |
| 4 | HO2S |
| 5 | Catalyst monitor sensor |
| 6 | CHT sensor |
| 7 | CKP sensor |
| 8 | Wastegate actuator |
| 9 | VCT oil control solenoid exhaust |

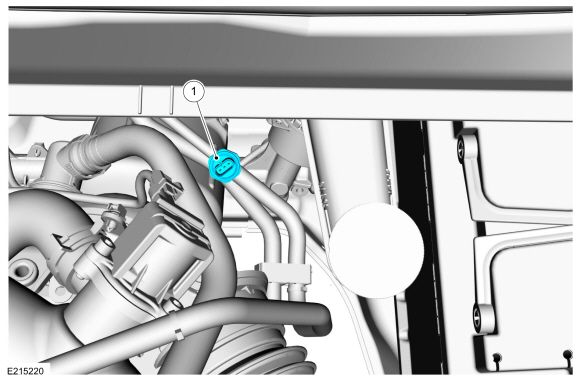

Fuel Pressure Sensor
| Item | Description |
|---|---|
| 1 | Fuel pressure sensor |
Turbocharger Bypass Valve
| Item | Description |
|---|---|
| 1 | Turbocharger Bypass Valve |
Electronic Engine Controls - Overview. Description and Operation
Overview
The
EEC system provides optimum control of the engine through the enhanced
capability of the powertrain control module (PCM). The EEC system also
has an on board diagnostic (OBD) monitoring system with features and
functions to meet federal regulations on exhaust emissions...
Electronic Engine Controls - System Operation and Component Description. Description and Operation
System Operation
Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) Manual Section 1 Description and Operation. ..
