Ford Fusion: Climate Control System - General Information / Driver Side Register. Removal and Installation
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
-

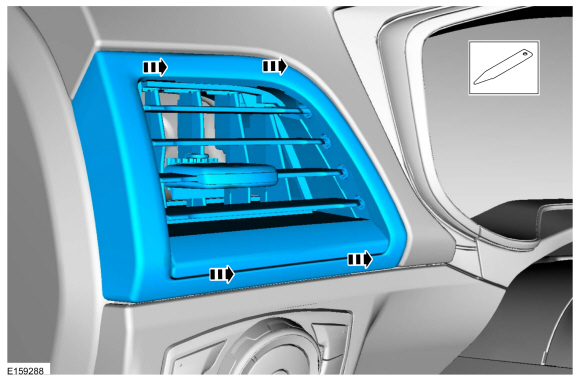

Remove the driver side register assembly.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information...
Other information:
Planetary Gearset Exploded View
Item
Description
1
Front planetary sun gear and shell assembly
2
Front planetary carrier/rear planetary ring gear assembly
3
Gear - center planetary sun
4
Center planetary carrier/front ring gear assembly
5
Rear planetary carrier/center ring gear assembly..
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Disconnect the IAT sensor electrical connector and remove the IAT sensor.
Torque:
124 lb.in (14 Nm)
Installation
To install, reverse the removal procedure.
..
