Ford Fusion: Handles, Locks, Latches and Entry Systems / Door Latch Lubrication. General Procedures

Special Tool(s) / General Equipment

Flat-Bladed Screwdriver

Materials

Name Specification
Motorcraft® Multi-Purpose Grease Spray
XL-5-A
ESB-M1C93-B


Activation

NOTE: Typical left front door shown, others similar.

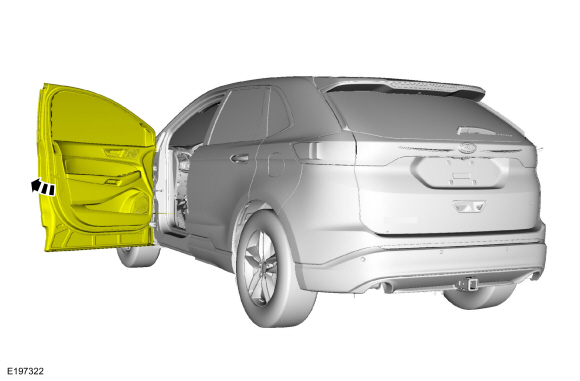

  1. Open the door.
Ford Fusion. Door Latch Lubrication. General Procedures

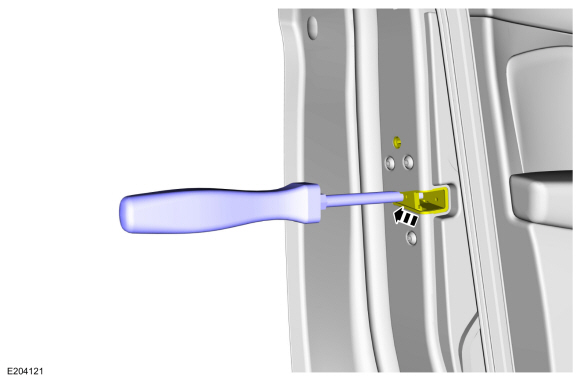

  1. Using a flat blade screwdriver, fully close the latch (2 clicks).
    Use the General Equipment: Flat-Bladed Screwdriver
Ford Fusion. Door Latch Lubrication. General Procedures

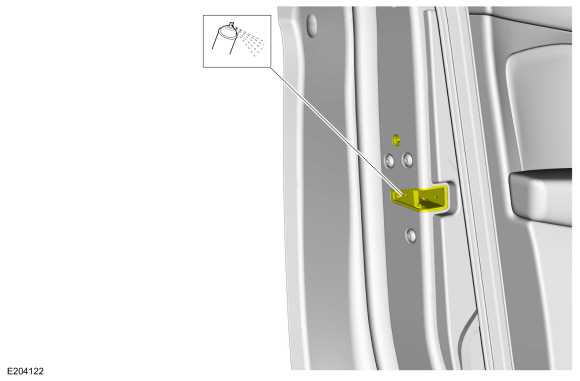

  1. NOTICE: Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

    Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.
    Material: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
Ford Fusion. Door Latch Lubrication. General Procedures
  1. NOTE: Some exterior door handles are operated mechanically while other exterior door handles are operated electronically.

    Open the latch using the exterior door handle.
Ford Fusion. Door Latch Lubrication. General Procedures

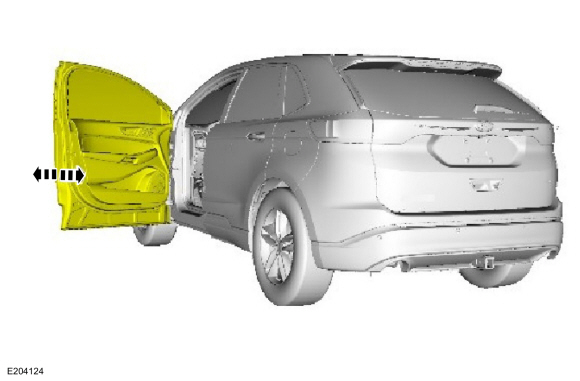

  1. Open and close the door several times to circulate the lubricant inside the latch.
Ford Fusion. Door Latch Lubrication. General Procedures
  1. Open the door.
Ford Fusion. Door Latch Lubrication. General Procedures

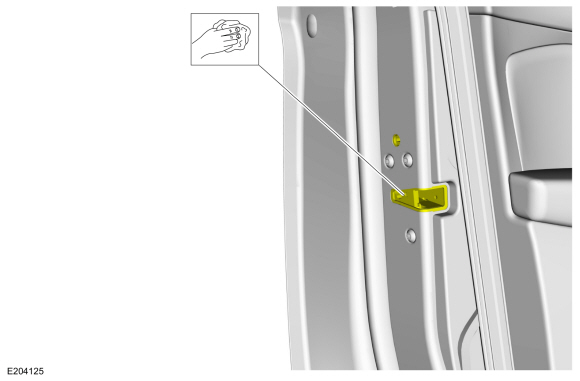

  1. Wipe off any excess grease.
Ford Fusion. Door Latch Lubrication. General Procedures
