Ford Fusion: Voltage Converter/Inverter / Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Electrical / Battery and Charging System / Voltage Converter/Inverter / Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

Removal

Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation  WARNING: Disconnect the battery before servicing the direct current to alternating current (DC-AC) inverter or alternating current (AC) powerpoint to prevent the risk of high voltage shock. Failure to follow this instruction may result in serious personal injury.

  1. Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Follow the health and safety precautions.
    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

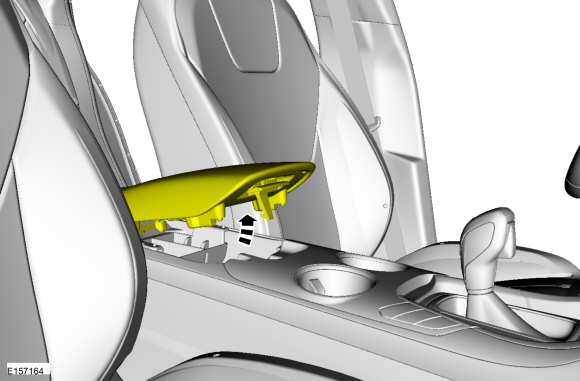

  1. Raise the armrest.
Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

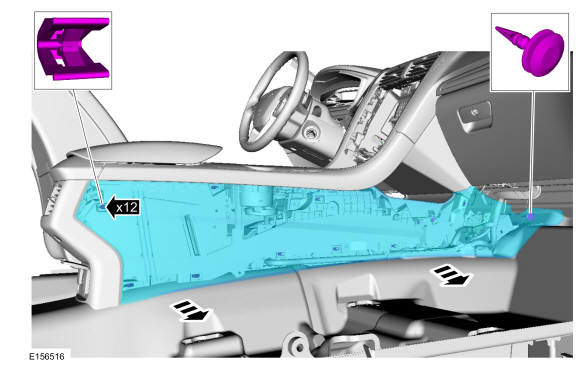

  1. Release the clips and remove the RH side floor console finish panel.
Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

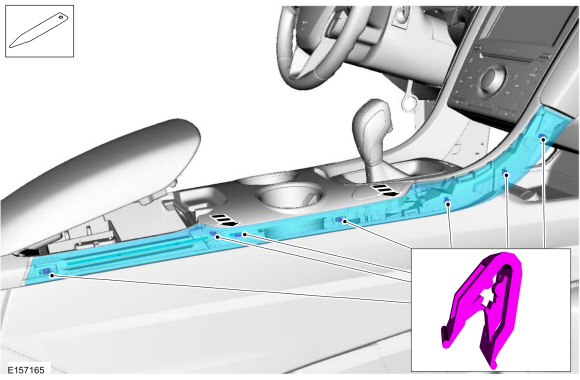

  1. Remove the pushpin, release the clips and remove the RH side floor console side trim panel.
Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

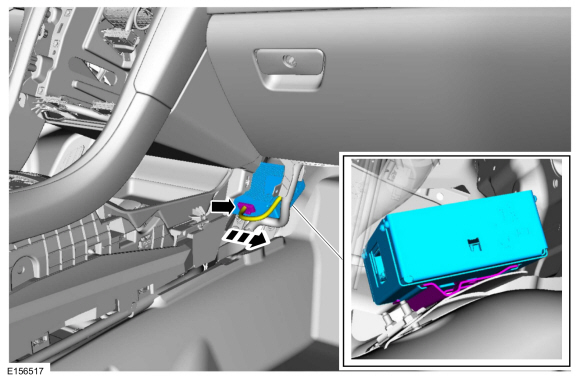

  1. Disconnect the electrical connector and remove the DC/ AC inverter.
Ford Fusion. Direct Current/Alternating Current (DC/AC) Inverter. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
