Ford Fusion: Supplemental Restraint System / Clockspring Adjustment. General Procedures

Ford Fusion. Clockspring Adjustment. General Procedures  WARNING: If the clockspring is not correctly centralized, it may fail prematurely. If in doubt, repeat the centralizing procedure. Failure to follow these instructions may increase the risk of serious personal injury or death in a crash.

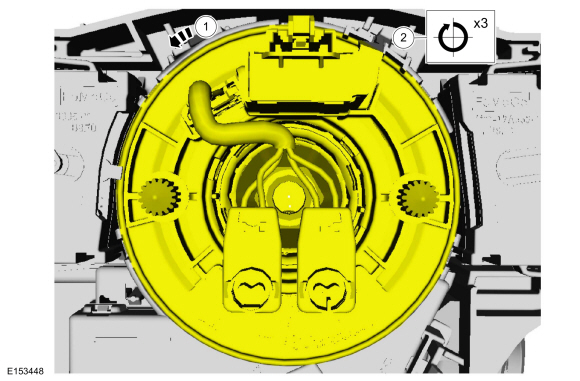

NOTE: Typical clockspring shown, others similar.

  1. Ford Fusion. Clockspring Adjustment. General Procedures  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. NOTICE: Do not over-rotate the clockspring inner rotor. The internal ribbon wire is connected to the clockspring rotor. The internal ribbon wire acts as a stop and can be broken from its internal connection. Failure to follow this instruction may result in component damage and/or system failure.

    NOTE: After final positioning, do not allow the clockspring rotor to rotate from this position.

    1. Turn counterclockwise until resistance is felt, then turn clockwise so the electrical connector is in the 12 o'clock position.
    1. Turn the component clockwise through 3 complete turns.
