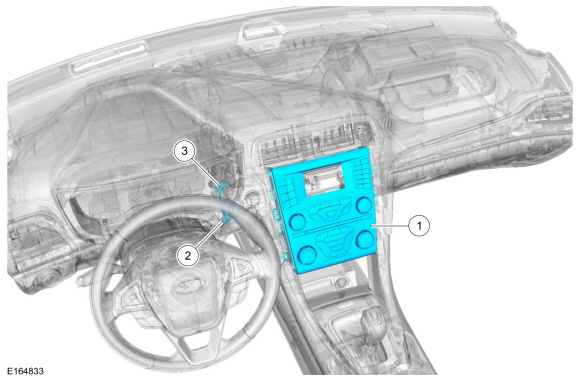

Ford Fusion. Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location. Description and Operation

Item Description
1 Heating, Ventilation, and Air Conditioning (HVAC) Module
2 In-vehicle temperature & humidity Sensor
3 Driver Side Footwell Air Discharge Temperature Sensor

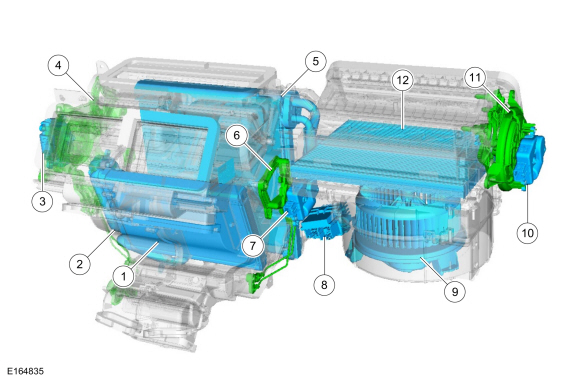

Ford Fusion. Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location. Description and Operation
Item Description
1 Heater Core
2 Evaporator Temperature Sensor
3 Air Distribution Door Actuator
4 Air Distribution Door Actuating Assembly
5 Evaporator
6 Temperature Door Actuating Assembly (Passenger Side Tempteratue Door Actuator Assembly)
7 Temperature Door Actuator (Passenger Side Tempteratue Door Actuator)
8 Blower Motor Speed Control
9 Blower Motor
10 Air Inlet Door Actuator
11 Air Inlet Door Actuating Assembly
12 Cabin Air Filter

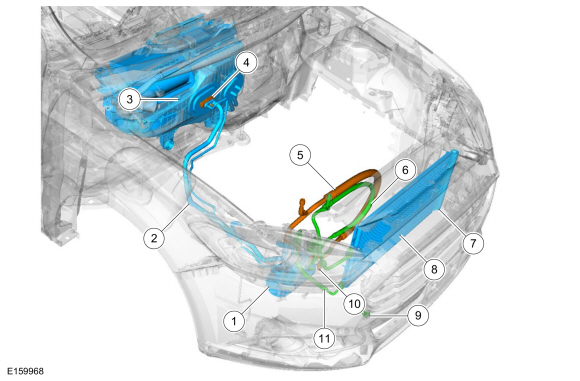

Ford Fusion. Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location. Description and Operation
Item Description
1 Air Conditioning (A/C) Compressor
2 Evaporator Inlet and Outlet Manifold
3 Climate Control Housing
4 Thermostatic Expansion Valve
5 Air Conditioning (A/C) Compressor Inlet Line
6 Air Conditioning (A/C) Compressor Outlet Line
7 Receiver Drier Element
8 Condenser
9 Ambient Air Temperature Sensor
10 Air Conditioning (A/C) Pressure Transducer
11 Condenser Outlet Line

2.7L EcoBoost

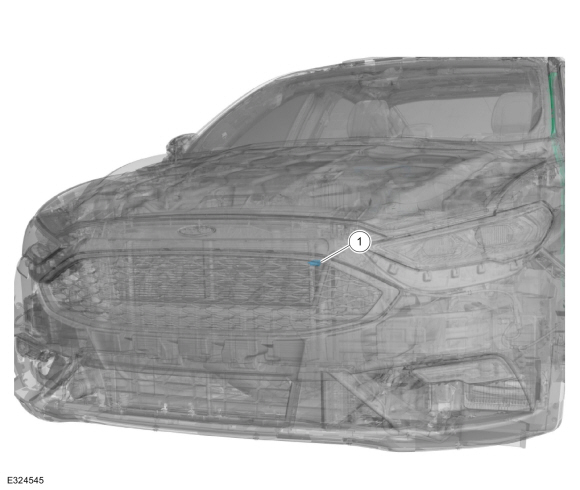

Ford Fusion. Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location. Description and Operation
Item Description
1 Ambient Air Temperature Sensor

Vehicles equipped with Auto Start Stop

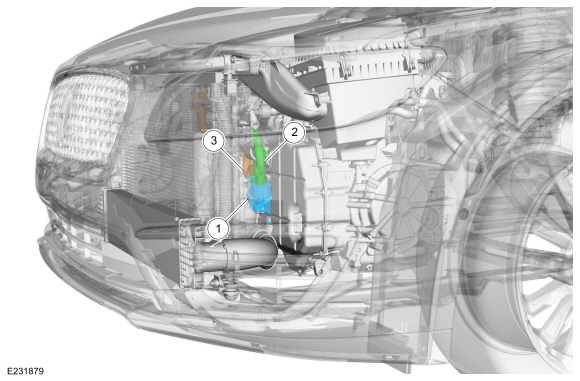

Ford Fusion. Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location. Description and Operation
Item Description
1 Cabin Heater Coolant Pump
2 Cabin Heater Coolant Pump Inlet Hose
3 Cabin Heater Coolant Pump Outlet Hose
