Ford Fusion: Climate Control System - General Information / Cabin Air Filter. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Ford Fusion. Cabin Air Filter. Removal and Installation  WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Climate Control System Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Remove the glove compartment.
    Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).

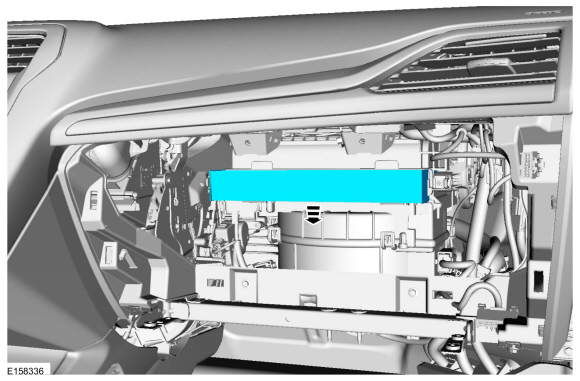

  1. Remove the cabin air filter cover.
Ford Fusion. Cabin Air Filter. Removal and Installation

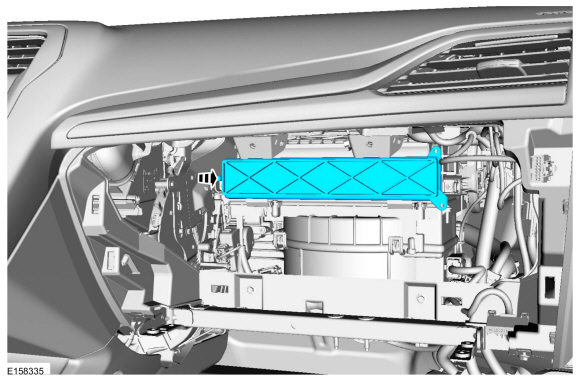

  1. Remove the cabin air filter.
Ford Fusion. Cabin Air Filter. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
