Ford Fusion: Rear Disc Brake / Brake Caliper Anchor Plate. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Chassis / Brake System / Rear Disc Brake / Brake Caliper Anchor Plate. Removal and Installation

Removal

NOTE: Steps in the removal procedure may contain installation details.

  1. Remove the brake pads.
    Refer to: Brake Pads (206-04 Rear Disc Brake, Removal and Installation).

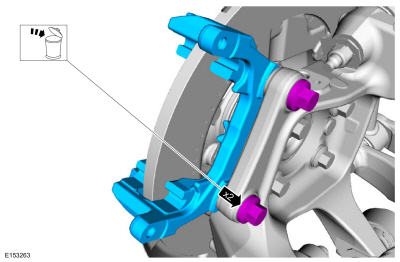

  1. Remove the bolts and the brake caliper anchor plate. Discard the bolts.
    Torque: 76 lb.ft (103 Nm)
Ford Fusion. Brake Caliper Anchor Plate. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
