Ford Fusion: Parking Aid - Vehicles With: Active Park Assist / Active Park Assist Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

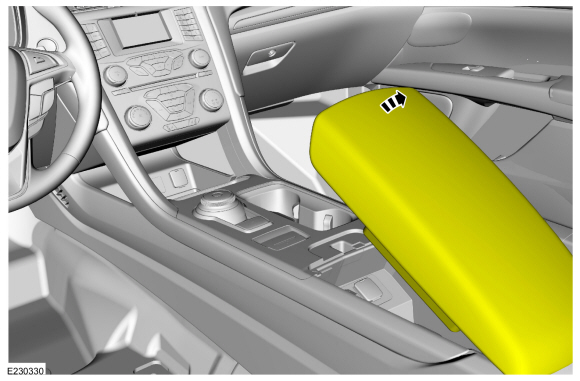

  1. Open the floor console stowage bin lid.
Ford Fusion. Active Park Assist Switch. Removal and Installation
  1. On both sides.

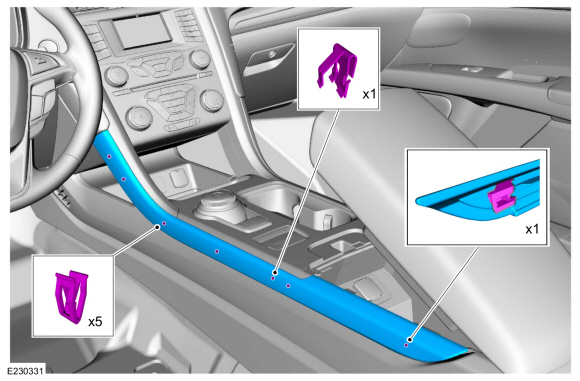

    Detach the clips and remove the floor console upper side finish panels.
Ford Fusion. Active Park Assist Switch. Removal and Installation

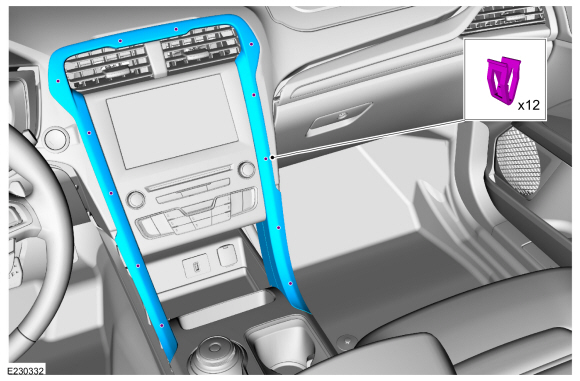

  1. Detach the clips and remove the instrument panel center finish panel.
Ford Fusion. Active Park Assist Switch. Removal and Installation
  1. Remove the screws, detach the clips, disconnect the electrical connectors and remove the upper floor console finish panel.
Ford Fusion. Active Park Assist Switch. Removal and Installation
  1. Release the tabs and remove the active park assist switch.
Ford Fusion. Active Park Assist Switch. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
