Ford Fusion: Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Powertrain / Engine / Electronic Engine Controls - 1.5L EcoBoost (118kW/160PS) – I4 / Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

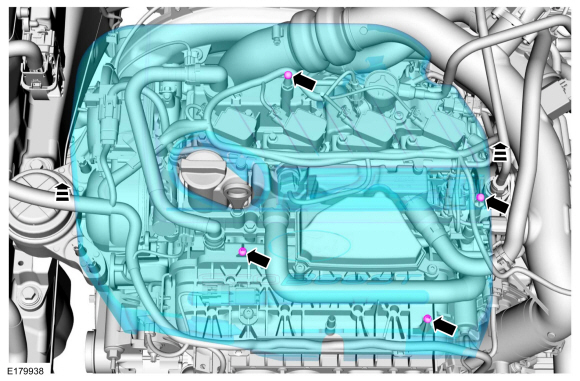

  1. Remove the engine appearance cover.
Ford Fusion. Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation
  1. Disconnect the electrical connectors, remove the bolts and the VCT oil control solenoids.
    Torque: 71 lb.in (8 Nm)
Ford Fusion. Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
