Center Console
Stow items in the cup holder carefully as
items may become loose during hard
braking, acceleration or crashes, including
hot drinks which may spill.

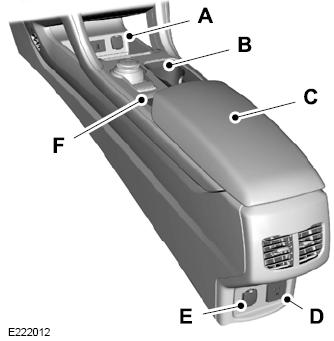

Available console features include:

- Front storage compartment with
USB ports and auxiliary power
point.
- Cup holder.
- Storage compartment.
- AC power point.
- Auxiliary power point.
- Switch pack.
Overhead Console

Press near the rear edge of the door to
open it.
Rear Seat Armrest (IF EQUIPPED)

Fold the armrest down to use the armrest
and cupholder.
WARNING: Do not keep electrical
devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design...
Other information:
System Operation
Refer to the PC/ED manual section 1 Description and Operation.
System Diagram
Item
Description
1
Valve cover
2
Turbocharger inlet pipe
3
Air cleaner (ACL) outlet pipe
4
Vapor ejector
5
Turbocharger to CAC (Charge Air Cooler) tube
6
Dual check valve
7
EVAP (Evaporative Emission) canister pur..
Symptom Chart(s)
Symptom Chart: Fuel System
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation). for information regarding Ford-specific diagnostic practices.
NOTE:
The following procedure diagnoses a slow to fill concern
only. For all other concern..
