Ford Fusion: Roof Sheet Metal Repairs / Roof Front Frame. Removal and Installation

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
Spot Weld Drill Bit
Locking Pliers

Removal

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTE: Roof without roof opening panel shown, roof with roof opening panel similar.

NOTE: Factory welds may be substituted with resistance or metal inert gas (MIG) plug welds. Resistance welds may not be placed directly over original location. They must be placed adjacent to original location and match factory welds in quantity. Metal inert gas (MIG) plug welds must equal factory welds in both location and quantity.

NOTE: Adequately protect all adjacent areas against cutting, grinding and welding procedures.

  1. Depower the SRS.
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B Supplemental Restraint System, General Procedures).
  1. If Required:
    Dimensionally restore the vehicle to pre-damaged condition.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
  1. Remove the roof.
    Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
    Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit
Ford Fusion. Roof Front Frame. Removal and Installation

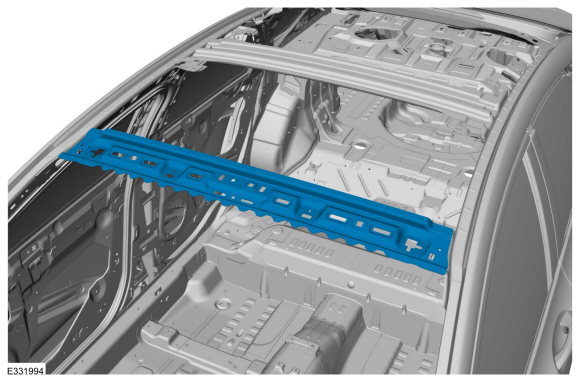

  1. NOTE: Pay particular attention to the location of adhesives and sealers to aid in installation.

    Remove the roof front frame.
Ford Fusion. Roof Front Frame. Removal and Installation

Installation

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTICE: The high-voltage battery in a battery electric vehicle (BEV), hybrid electric vehicle (HEV) or plug-in hybrid electric vehicle (PHEV) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: If refinishing cure temperatures exceed 60° C (140° F), the charge port light ring on plug-in vehicles must be removed.

NOTE: Roof without roof opening panel shown, roof with roof opening panel similar.

NOTE: Factory welds may be substituted with resistance or metal inert gas (MIG) plug welds. Resistance welds may not be placed directly over original location. They must be placed adjacent to original location and match factory welds in quantity. Metal inert gas (MIG) plug welds must equal factory welds in both location and quantity.

NOTE: Adequately protect all adjacent areas against cutting, grinding and welding procedures.

  1. Install, properly position and clamp the roof front frame.
    Use the General Equipment: Locking Pliers
Ford Fusion. Roof Front Frame. Removal and Installation

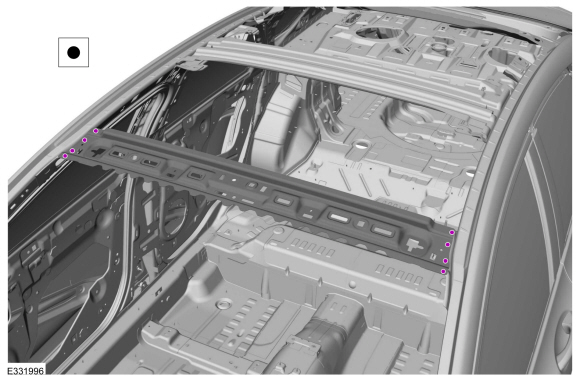

  1. Install the welds.
    Use the General Equipment: Resistance Spotwelding Equipment
Ford Fusion. Roof Front Frame. Removal and Installation
  1. Seam Sealing: All seams must be sealed to production level.
  1. Install the roof.
    Refer to: Roof Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
    Refer to: Roof Panel - Vehicles With: Roof Opening Panel (501-28 Roof Sheet Metal Repairs, Removal and Installation).
  1. Repower the SRS.
    Refer to: Supplemental Restraint System (SRS) Depowering and Repowering (501-20B Supplemental Restraint System, General Procedures).
