Ford Fusion: Supplemental Restraint System / Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

Ford Fusion 2013–2020 Service Manual / Body and Paint / Body and Paint / Supplemental Restraint System / Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

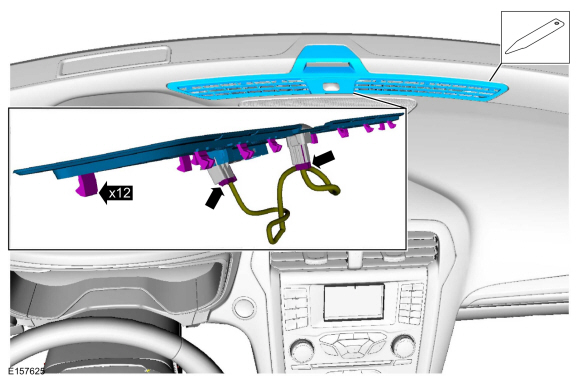

    • Release the tabs and remove the defroster grille panel.
      Use the General Equipment: Interior Trim Remover
    • Disconnect the electrical connector.
Ford Fusion. Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

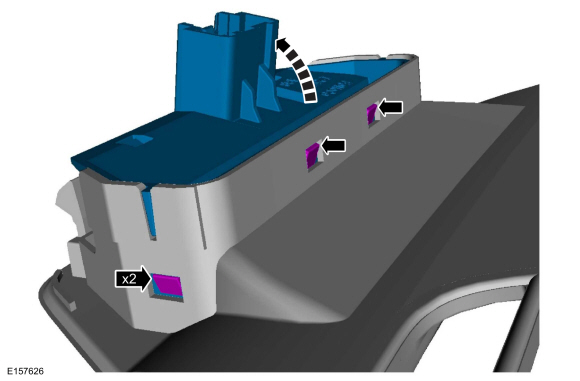

  1. Release the tabs and remove the PAD indicator.
Ford Fusion. Passenger Airbag Deactivation (PAD) Indicator. Removal and Installation

Installation

  1. To install, reverse the removal procedure.
